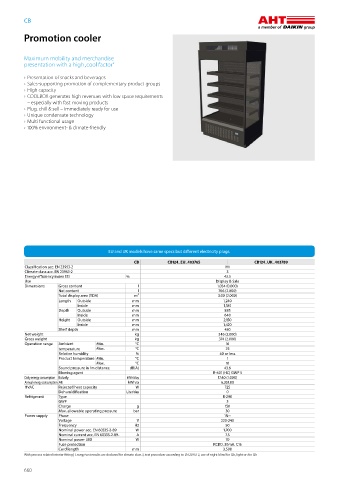

Page 662 - General Catalogue

CB

Promotion cooler

Maximum mobility and merchandise
presentation with a high „cool factor“

› Presentation of snacks and beverages
› Sales-supporting promotion of complementary product groups
› High capacity
› COOLBOX generates high revenues with low space requirements
– especially with fast-moving products
› Plug, chill & sell – immediately ready for use
› Unique condensate technology
› Multi functional usage
› 100% environment- & climate-friendly

EU and UK models have same specs but different electricity plugs.

CB CB124_EU_403765 CB124_UK_403789
Classification acc. EN 23953-2 H1
Climate class acc. EN 23953-2 3
Energy efficiency index EEI % 43.5
Use Display & Sale
Dimensions Gross content l 1,034 (0.000)
Net content l 766 (2.000)
Total display area (TDA) m² 3.00 (2.000)
Length Outside mm 1,240
Inside mm 1,180
Depth Outside mm 885
Inside mm 640
Height Outside mm 2,150
Inside mm 1,420
Shelf depth mm 450
Net weight kg 346 (2.000)
Gross weight kg 374 (2.000)
Operation range Ambient Min. °C 16
temperature Max. °C 25
Relative humidity % 60 or less
Product temperature Min. °C 1
Max. °C 10
Sound pressure in 1m distance dB(A) 43.6
Blowing agent R-601 (HC) GWP 5
Daily energy consumption Edaily kWh/day 17.40 (1.000)
Annual energy consumption AE kWh/a 6,351.00
HVAC Rejected heat capacity W 725
Dehumidification Liter/day 0
Refrigerant Type R-290
GWP 3
Charge g 150
Max. allowable operating pressure bar 30
Power supply Phase 1N~
Voltage V 220-240
Frequency Hz 50
Nominal power acc. EN 60335-2-89 W 1,700
Nominal current acc. EN 60335-2-89- A 7.5
Nominal power LED W 70
Fuse protection RCBO, 30mA, C16
Cord length mm 3,500
With process-related interior fitting | Energy test results are declared for climate class 3, test procedure according to EN 23953-2, use of night blind for 12h, light on for 12h
