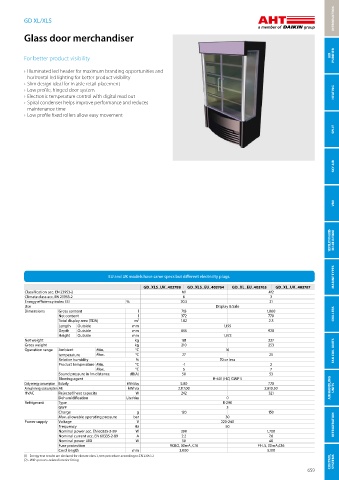

Page 661 - General Catalogue

INTRODUCTION

GD XL/XLS

Glass door merchandiser

For better product visibility AIR PURIFIER

› Illuminated led header for maximum branding opportunities and
horizontal led lighting for better product visibility
› Slim design ideal for in aisle retail placement
› Low profile, hinged door system HEATING
› Electronic temperature control with digital read out
› Spiral condenser helps improve performance and reduces
maintenance time
› Low profile fixed rollers allow easy movement
SPLIT

SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

EU and UK models have same specs but different electricity plugs.
EU and UK models have same specs but different electricity plugs. MARINE TYPES
AC S_UK_403784 M_UK_403785 M_EU_403761 W_UK_403786 S_EU_403760 W_EU_403762
Classification acc. EN 23953-2 M2 GD_XLS_UK_403788 GD_XLS_EU_403764 GD_XL_EU_403763 GD_XL_UK_403787
Climate class acc. EN 23953-2 3 Classification acc. EN 23953-2 M1 M2
Energy efficiency index EEI % 42.5 38.6 48.6 42.5 48.6 Climate class acc. EN 23953-2 6 3
Use Display & Sale Energy efficiency index EEI % 20.5 21
Dimensions Gross content l 245 463 463 325 245 325 Use Display & Sale
Net content l 190 324 324 250 190 250 Dimensions Gross content l 713 1,060
Total display area (TDA) m² 1.00 1.72 1.72 1.20 1.00 1.20 Net content l 372 770 CHILLERS
Length Outside mm 706 716 914 706 914 Total display area (TDA) m² 1.82 2.3
Depth Outside mm 766 771 766 Length Outside mm 1,195
Height Outside mm 1,495 1,973 1,495 Depth Outside mm 655 928
Shelf depth mm 1 x 388, 2 x 321 Height Outside mm 1,973
Net weight kg 144 152 135 144 135 Net weight kg 181 227
Gross weight kg 135 165 150 135 150 Gross weight kg 210 253
Operation range Ambient Min. °C 16 Operation range Ambient Min. °C 16
temperature Max. °C 25 temperature Max. °C 27 25 FAN COIL UNITS
Relative humidity % 60 or less Relative humidity % 70 or less
Product temperature Min. °C -1 Product temperature Min. °C -1 2
Max. °C 7 Max. °C 5 7
Sound pressure in 1m distance dB(A) 52.8 53.3 52.3 52.8 52.3 Sound pressure in 1m distance dB(A) 50 53
Blowing agent R-601 (HC) GWP 5 Blowing agent R-601 (HC) GWP 5
Daily energy consumption Edaily kWh/day 8.50 10.50 10.70 8.50 10.70 Daily energy consumption Edaily kWh/day 5.80 7.70
Annual energy consumption AE kWh/a 3,102.50 3,832.50 3,905.50 3,102.50 3,905.50 Annual energy consumption AE kWh/a 2,117.00 2,810.50 AIR HANDLING UNITS
HVAC Rejected heat capacity W 354 438 446 354 446 HVAC Rejected heat capacity W 242 321
Dehumidification Liter/day 0 Dehumidification Liter/day 0
Refrigerant Type R-290 Refrigerant Type R-290
GWP 3 GWP 3
Charge g 140 Charge g 120 150
Max. allowable operating pressure bar 30 Max. allowable operating pressure bar 30
Power supply Voltage V 220-240 Power supply Voltage V 220-240
Frequency Hz 50 Frequency Hz 50 REFRIGERATION
Nominal power acc. EN 60335-2-89 W 680 880 850 680 850 Nominal power acc. EN 60335-2-89 W 390 1,700
Nominal current acc. EN 60335-2-89 A 3.5 5.2 5.0 3.5 5.0 Nominal current acc. EN 60335-2-89 A 2.2 7.6
Nominal power LED W 18 25 18 Nominal power LED W 50 40
Fuse protection RCBO, 30mA, C16 Fuse protection RCBO, 30mA, C16 FI-LS, 30mA,C16
Cord length mm 2,500 Cord length mm 3,000 3,100
(1) - Energy test results are declared for climate class 3, test procedure according to EN 23953-2, use of night blind for 12h, light on for 12h (1) - Energy test results are declared for climate class 3, test procedure according to EN 23953-2
(2) - With process-related interior fitting (2) - With process-related interior fitting CONTROL SYSTEMS
