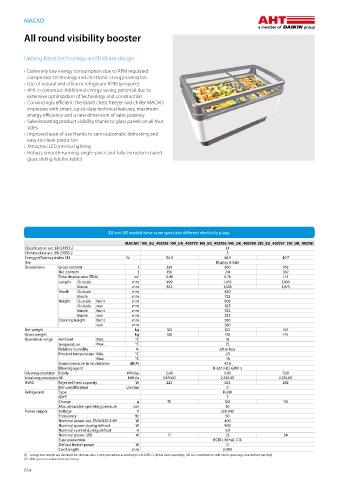

Page 656 - General Catalogue

MACAO

All round visibility booster

Uniting latest technology and brilliant design

› Extremely low energy consumption due to RPM regulated
compressor technology and electronic energy-saving fan
› Use of natural and efficient refrigerant R290 (propane)
› AHT e-conomize: Additional energy saving potential due to
extensive optimization of technology and construction
› Convincingly efficient: the island chest freezer and chiller MACAO
impresses with smart, up-to-date technical features, maximum
energy efficiency and a new dimension of sales potency
› Sales-boosting product visibility thanks to glass panels on all four
sides
› Improved ease of use thanks to semi-automatic defrosting and
easy-to-clean plastic bin
› Attractive LED interior lighting
› Robust, smooth-running, single-piece and fully extrusion-coated
glass sliding lids (lockable)

EU and UK models have same specs but different electricity plugs.

MACAO 100_EU_403755 100_UK_403779 145_EU_403756 145_UK_403780 210_EU_403757 210_UK_403781
Classification acc. EN 23953-2 L1
Climate class acc. EN 23953-2 3
Energy efficiency index EEI % 54.3 46.9 40.7
Use Display & Sale
Dimensions Gross content l 338 500 763
Net content l 156 241 362
Total display area (TDA) m² 0.49 0.76 1.13
Length Outside mm 999 1,455 2,100
Inside mm 872 1,328 1,973
Depth Outside mm 850
Inside mm 723
Height Outside front mm 900
Outside rear mm 925
Inside front mm 523
Inside rear mm 523
Stacking height front mm 280
rear mm 280
Net weight kg 103 122 167
Gross weight kg 126 130 175
Operation range Ambient Min. °C 16
temperature Max. °C 25
Relative humidity % 60 or less
Product temperature Min. °C -23
Max. °C -18
Sound pressure in 1m distance dB(A) 43.6
Blowing agent R-601 (HC) GWP 5
Daily energy consumption Edaily kWh/day 5.40 6.10 7.00
Annual energy consumption AE kWh/a 1,971.00 2,226.50 2,555.00
HVAC Rejected heat capacity W 225 254 292
Dehumidification Liter/day 0
Refrigerant Type R-290
GWP 3
Charge g 70 100 110
Max. allowable operating pressure bar 30
Power supply Voltage V 220-240
Frequency Hz 50
Nominal power acc. EN 60335-2-89 W 400
Nominal power during defrost W 900
Nominal current during defrost A 3.9
Nominal power LED W 17 25 34
Fuse protection RCBO, 30mA, C16
Defrost heater power W 0
Cord length mm 2,400
(1) - Energy test results are declared for climate class 3, test procedure according to EN 23953-2 (initial door openings, 12h LED switched on with door openings, one defrost per day)
(2) - With process-related interior fitting
