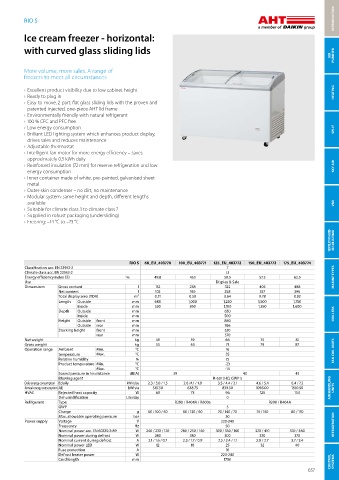

RIO S

Ice cream freezer - horizontal:

with curved glass sliding lids
AIR PURIFIER

More volume, more sales. A range of
freezers to meet all circumstances

› Excellent product visibility due to low cabinet height HEATING
› Ready to plug in
› Easy-to-move, 2-part, flat glass sliding lids with the proven and
patented injected, one-piece AHT lid frame
› Environmentally friendly with natural refrigerant
› 100 % CFC and PFC free
› Low energy consumption SPLIT
› Brilliant LED lighting system which enhances product display,
drives sales and reduces maintenance
› Adjustable thermostat
› Intelligent fan motor for more energy efficiency – saves
approximately 0,5 kWh daily
› Reinforced insulation (72 mm) for reserve refrigeration and low SKY AIR
energy consumption
› Inner container made of white, pre-painted, galvanised sheet
metal
› Outer-skin condenser – no dirt, no maintenance
› Modular system: same height and depth, different lengths
available VRV
› Suitable for climate class 3 to climate class 7
› Supplied in robust packaging (undersliding)
› Freezing: –14 °C to –23 °C
VENTILATION & BID- DLE AIR CURTAINS

RIO S 68_EU_403770 100_EU_403771 125_EU_403772 150_EU_403773 175_EU_403774
Classification acc. EN 23953-2 7
Climate class acc. EN 23953-2 L1
Energy efficiency index EEI % 49.8 45.1 50.5 57.3 62.5 MARINE TYPES
Use Display & Sale
Dimensions Gross content l 132 238 322 405 488
Net content l 102 190 258 327 396
Total display area (TDA) m² 0.31 0.50 0.64 0.78 0.92
Length Outside mm 680 1,000 1,250 1,500 1,750
Inside mm 530 850 1,100 1,350 1,600
Depth Outside mm 650
Inside mm 500 CHILLERS
Height Outside front mm 880
Outside rear mm 766
Stacking height front mm 530
rear mm 570
Net weight kg 49 59 66 74 81
Gross weight kg 53 63 71 79 87
Operation range Ambient Min. °C 16 FAN COIL UNITS
temperature Max. °C 35
Relative humidity % 75
Product temperature Min. °C -23
Max. °C -14
Sound pressure in 1m distance dB(A) 39 40 43
Blowing agent R-601 (HC) GWP 5
Daily energy consumption Edaily kWh/day 2.3 / 3.0 / 1.5 2.6 /4.1 / 1.8 3.5 / 4.4 / 2.1 4.6 / 5.4 6.4 / 7.2
Annual energy consumption AE kWh/a 547.50 638.75 839.50 1095.00 1350.50 AIR HANDLING UNITS
HVAC Rejected heat capacity W 63 73 96 125 154
Dehumidification Liter/day 0
Refrigerant Type R290 / R404A / R600a R290 / R404A
GWP 5
Charge g 50 / 100 / 50 60 / 130 / 60 70 / 140 / 70 75 / 150 80 / 170
Max. allowable operating pressure bar 30
Power supply Voltage V 220-240
Frequency Hz 50 REFRIGERATION
Nominal power acc. EN 60335-2-89 W 240 / 230 / 120 280 / 250 / 140 300 / 350 / 160 320 / 410 370 / 460
Nominal power during defrost W 240 280 300 320 370
Nominal current during defrost A 2.1 / 1.6 / 0.7 2.3 / 1.7 / 0.9 2.5 / 2.4 / 1.1 2.8 / 2.7 3.7 / 3.4
Nominal power LED W 12 18 25 32 40
Fuse protection A 16
Defrost heater power W 220-240
Cord length mm 1750 CONTROL SYSTEMS
