ПОСМОТРЕТЬ ВСЕ ТЕХНИЧЕСКИЕ
ЧЕРТЕЖИ FXZQ-A НА MY.DAIKIN.EU

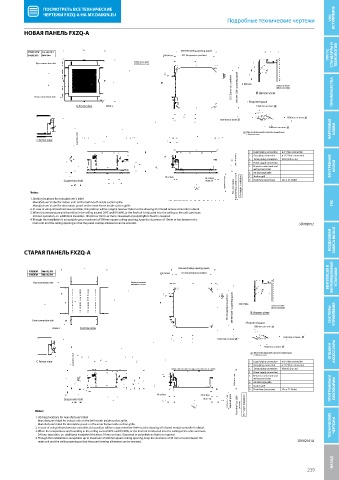

Подробные технические чертежи VRV, ВСТУПЛЕНИЕ
НОВАЯ ПАНЕЛЬ FXZQ-A
FXZQ-A
Decoration panel
585-595 (Ceiling opening space)
BYFQ60C2W1W Fresh white N9.5
BYFQ60C2W1S Daikin Silver 300 or less 533 (Suspension position) VRV IV, СТАНДАРТЫ И ТЕХНОЛОГИИ
Service access panel
Pipe connection side 450x450mm or more
533 (Suspension position) 585-595 (Ceiling opening space) 4-M4 Hole Outdoor air intake

(direct connection)
Drain connection side B Arrow view ПРЕИМУЩЕСТВА
A Arrow view Note) 2. • Required space
1500 mm or more
1500 mm or more
1500 mm or more
1500 mm or more НАРУЖНЫЕ БЛОКИ
When the discharge grill is closed, the required space
Adjustable (0-630) is 200mm or more
C Arrow view
1 2 Liquid piping connection ø 6.4 Flare connection
300 mm or more 3 4 Drain piping connection VP20 (O.D. ø 26)
Gas piping connection
ø 12.7 Flare connection
Power supply connection
5 Remote control code and ВНУТРЕННИЕ БЛОКИ
wiring connection
6 Air discharge grille
10 or less 10 or less 7 Suction grill
1500 mm or more Required space From the oor 2500 or more For height installation
Suspension bolt Note ) 4. 8 Drain hose (accessory) I.D. ø 25 Outlet
Notes:
1. Sticking locations for manufacturer`s label
Manufacturer`s label for indoor unit: on the bell mouth inside suction grille. ГВС
Manufacturer`s label for decoration panel: on the inner frame inside suction grille.
2. In case of using infrared remote controller, this position will be a signal receiver. Refer tot the drawing of infrared remote controller in detail.
3. When the temperature and humidity in the ceiling exceed 30ºC and RH 80%, or the fresh air is inducted into the ceiling or the unit continues
24 hour operation, an additional insulation (thickness 10mm or more, Glasswool or polyethylene foam) is required.
4. Though the installation is acceptable up to maximum of 595mm square ceiling opening, keep the clearance of 10mm or less between the
main unit and the ceiling opening so that the panel overlap allowance can be ensured. 3D082052
ВОЗДУШНАЯ ЗАВЕСА BIDDLE
СТАРАЯ ПАНЕЛЬ FXZQ-A

Decoration panel
585-660 (Ceiling opening space)
300 or less 533 (Suspension posotion) ВЕНТИЛЯЦИЯ И ВЕНТИЛЯЦИОННЫЕ УСТАНОВКИ
Pipe connection side Service access panel
450x450mm or more
533 (Suspension posotion) 585-660 (Ceiling opening space) 4-M4 Hole B Arrow view Outdoor air intake

(direct connection)

Drain connection side • Required space СИСТЕМЫ УПРАВЛЕНИЯ
Note) 2. A Arrow view 1500 mm or more
1500 mm or more
1500 mm or more
1500 mm or more
When the discharge grill is closed, the required space ОПЦИИ И АКСЕССУАРЫ
Adjustable (0-645)
is 200mm or more
C Arrow view 1 Liquid piping connection ø 6.4 Flare connection
Drain piping connection
3 2 Gas piping connection ø 12.7 Flare connection
VP20 (O.D. ø 26)
4 5 Power supply connection
Remote control code and
295 mm or more 6 wiring connection
Air discharge grille
Drain hose (accessory)
8 7 Suction grill I.D. ø 25 Outlet ПРОГРАММЫ И ПЛАТФОРМЫ
45 or less 45 or less
1500 mm or more Required space From the oor 2500 or more For height installation
Suspension bolt Note ) 4.
Notes:
1. Sticking locations for manufacturer’s label
Manufacturer’s label for indoor unit: on the bell mouth inside suction grille.
Manufacturer’s label for decoration panel: on the inner frame inside suction grille. ТЕХНИЧЕСКИЕ ЧЕРТЕЖИ
2. In case of using infrared remote controller, this position will be a signal receiver. Refer tot the drawing of infrared remote controller in detail.
3. When the temperature and humidity in the ceiling exceed 30ºC and RH 80%, or the fresh air is inducted into the ceiling or the unit continues
24 hour operation, an additional insulation (thickness 10mm or more, Glasswool or polyethylene foam) is required.
4. Though the installation is acceptable up to maximum of 660mm square ceiling opening, keep the clearance of 45 mm or less between the
main unit and the ceiling opening so that the panel overlap allowance can be ensured. 3D082161A
НАЗАД Технические чертежи
239
