INTRODUCTION

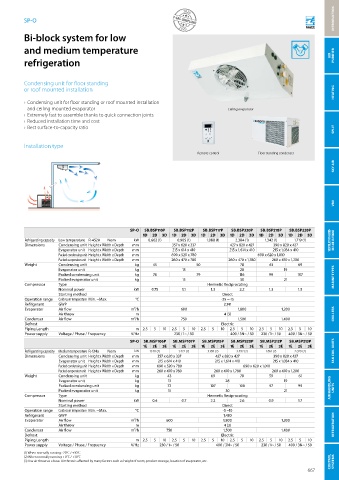

SP-O

Bi-block system for low

and medium temperature
refrigeration AIR PURIFIER

Condensing unit for floor standing
HEATING
or roof mounted installation
› Condensing unit for floor standing or roof mounted installation
and ceiling mounted evaporator Ceiling evaporator
› Extremely fast to assemble thanks to quick connection joints
› Reduced installation time and cost
› Best surface-to-capacity ratio
SPLIT

Installation type
Remote control Floor standing condenser
SKY AIR

VRV

SP-O SB.BSP110P SB.BSP112P SB.BSP117P SB.BSP330P SB.BSP218P SB.BSP220P
1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D
Refrigerating capacity Low temperature R-452A Nom kW 0.662 (1) 0.905 (1) 1.088 (1) 2.384 (1) 1.342 (1) 1.719 (1) VENTILATION & BID- DLE AIR CURTAINS
Dimensions Condensing unit Height x Width x Depth mm 357 x 620 x 337 427 x 820 x 427 390 x 820 x 427
Evaporator unit Height x Width x Depth mm 215 x 614 x 410 215 x 1,614 x 410 215 x 1,034 x 410
Packed condensing unit Height x Width x Depth mm 690 x 520 x 780 690 x 620 x 1,010
Packed evaporator unit Height x Width x Depth mm 260 x 470 x 780 260 x 470 x 1,780 260 x 470 x 1,200
Weight Condensing unit kg 45 50 78 61 69
Evaporator unit kg 13 28 19
Packed condensing unit kg 74 79 116 99 107 MARINE TYPES
Packed evaporator unit kg 15 30 21
Compressor Type Hermetic Reciprocating
Nominal power kW 0.75 1.1 1.3 2.2 1.3 1.5
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -25 ~-15
Refrigerant GWP 2,141
Evaporator Air flow m³/h 600 1,800 1,200
Air throw m 4 (3) CHILLERS
Condenser Air flow m³/h 750 1,500 1,400
Defrost Electric
Piping Length m 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Voltage / Phase / Frequency V/Hz 230 / 1~ / 50 400 / 3N~ / 50 230 / 1~ / 50 400 / 3N~ / 50
SP-O SB.MSP106P SB.MSP107P SB.MSP315P SB.MSP320P SB.MSP212P SB.MSP213P
1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E
Refrigerating capacity Medium temperature R-134a Nom kW 1.140 (2) 1.422 (2) 3.188 (2) 3.492 (2) 1.816 (2) 2.029 (2) FAN COIL UNITS
Dimensions Condensing unit Height x Width x Depth mm 357 x 620 x 337 427 x 820 x 427 390 x 820 x 427
Evaporator unit Height x Width x Depth mm 215 x 614 x 410 215 x 1,614 x 410 215 x 1,034 x 410
Packed condensing unit Height x Width x Depth mm 690 x 520 x 780 690 x 620 x 1,010
Packed evaporator unit Height x Width x Depth mm 260 x 470 x 780 260 x 470 x 1,780 260 x 470 x 1,200
Weight Condensing unit kg 43 69 70 59 61
Evaporator unit kg 13 28 19
Packed condensing unit kg 72 107 108 97 99 AIR HANDLING UNITS
Packed evaporator unit kg 15 30 21
Compressor Type Hermetic Reciprocating
Nominal power kW 0.4 0.7 2.2 2.6 0.9 1.7
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -5 ~10
Refrigerant GWP 1,430
Evaporator Air flow m³/h 600 1,800 1,200
Air throw m 4 (3) REFRIGERATION
Condenser Air flow m³/h 750 1,500 1,400
Defrost Electric
Piping Length m 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Voltage / Phase / Frequency V/Hz 230 / 1~ / 50 400 / 3N~ / 50 230 / 1~ / 50 400 / 3N~ / 50
(1) When normally running: -20°C / +30°C
(2) When normally running: +0°C / +30°C
(3) Use air throw as a base. Air throw is affected by many factors such as height of room, product storage, location of evaporator, etc. CONTROL SYSTEMS
