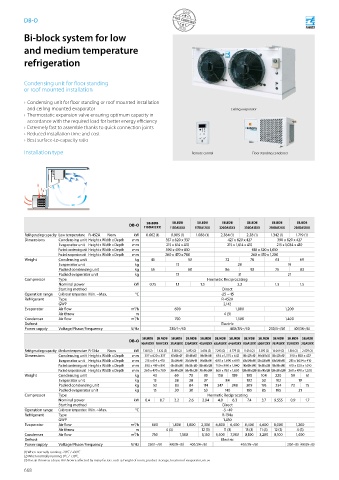

Page 670 - General Catalogue

DB-O

Bi-block system for low

and medium temperature
refrigeration

Condensing unit for floor standing
or roof mounted installation

› Condensing unit for floor standing or roof mounted installation
and ceiling mounted evaporator Ceiling evaporator
› Thermostatic expansion valve ensuring optimum capacity in
accordance with the required load for better energy efficiency
› Extremely fast to assemble thanks to quick connection joints
› Reduced installation time and cost
› Best surface-to-capacity ratio

Installation type Remote control Floor standing condenser

SB.BDB
SB.BDB
SB.BDB
SB.BDB
SB.BDB
SB.BDB
SB.BDB
DB-O 110DA12XX 112DA12XX 117DA12XX 320DA13XX 330DA13XX 218DA12XX 220DA12XX
Refrigerating capacity Low temperature R-452A Nom kW 0.662 (1) 0.905 (1) 1.088 (1) 2.384 (1) 2.38 (1) 1.342 (1) 1.719 (1)
Dimensions Condensing unit Height x Width x Depth mm 357 x 620 x 337 427 x 820 x 427 390 x 820 x 427
Evaporator unit Height x Width x Depth mm 215 x 614 x 410 215 x 1,614 x 410 215 x 1,034 x 410
Packed condensing unit Height x Width x Depth mm 590 x 419 x 810 610 x 520 x 1,010
Packed evaporator unit Height x Width x Depth mm 260 x 470 x 780 260 x 470 x 1,200
Weight Condensing unit kg 45 50 72 78 61 69
Evaporator unit kg 13 28 19
Packed condensing unit kg 55 60 86 92 75 83
Packed evaporator unit kg 15 31 21
Compressor Type Hermetic Reciprocating
Nominal power kW 0.75 1.1 1.3 2.2 1.3 1.5
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -25 ~-15
Refrigerant Type R-452A
GWP 2,142
Evaporator Air flow m³/h 600 1,800 1,200
Air throw m 4 (3)
Condenser Air flow m³/h 750 1,500 1,400
Defrost Electric
Power supply Voltage/Phase/Frequency V/Hz 230/1~/50 400/3N~/50 230/1~/50 400/3N~/50
SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB SB.MDB
DB-O
106A12XX 107A12XX 315A13XX 320A13XX 425A13XX 635A13XX 645A13XX 706A13XX 530A13XX 707A13XX 212A12XX 213A12XX
Refrigerating capacity Medium temperature R-134a Nom kW 1.140 (2) 1.422 (2) 3.188 (2) 3.492 (2) 3.606 (2) 7.293 (2) 8.779 (2) 11.014 (2) 5.070 (2) 14.069 (2) 1.816 (2) 2.029 (2)
Dimensions Condensing unit Height x Width x Depth mm 357 x 620 x 337 427 x 820 x 427 427 x 820 x 427 540 x 920 x 540 654 x 1,575 x 642 885 x 1,725 x 742 594 x 1,075 x 532 885 x 1,725 x 742 390 x 820 x 427
Evaporator unit Height x Width x Depth mm 215 x 614 x 410 215 x 1,614 x 410 215 x 1,614 x 410 545 x 805 x 690 600 x 1,690 x 690 620 x 1,840 x 700 530 x 1,220 x 690 620 x 1,840 x 700 215 x 1,034 x 410
Packed condensing unit Height x Width x Depth mm 590 x 419 x 810 610 x 520 x 1,010 610 x 520 x 1,010 880 x 650 x 1,200 750 x 890 x 1,840 780 x 890 x 1,990 710 x 820 x 1,280 780 x 890 x 1,990 610 x 520 x 1,010
Packed evaporator unit Height x Width x Depth mm 260 x 470 x 780 260 x 470 x 1,200 260 x 470 x 1,200 702 x 814 x 1,004 865 x 780 x 1,850 1,100 x 880 x 2,000 865 x 780 x 1,850 1,100 x 880 x 2,000 260 x 470 x 1,200
Weight Condensing unit kg 43 69 70 95 158 159 195 104 220 59 61
Evaporator unit kg 13 28 28 37 84 102 53 102 19
Packed condensing unit kg 53 83 84 114 247 248 309 193 334 73 75
Packed evaporator unit kg 15 30 30 53 140 165 85 165 21
Compressor Type Hermetic Reciprocating
Nominal power kW 0.4 0.7 2.2 2.6 2.94 4.8 6.3 7.4 3.7 9.555 0.9 1.7
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -5 ~10
Refrigerant Type R-134a
GWP 1,430
Evaporator Air flow m³/h 600 1,800 1,800 2,300 6,800 6,400 8,400 4,600 8,000 1,200
Air throw m 4 (3) 12 (3) 11 (3) 13 (3) 11 (3) 12 (3) 4 (3)
Condenser Air flow m³/h 750 1,500 3,150 5,500 7,000 8,100 3,200 8,100 1,400
Defrost Electric
Power supply Voltage/Phase/Frequency V/Hz 230/1~/50 400/3N~/50 400/3N~/50 400/3N~/50 230/1~/50 400/3N~/50
(1) When normally running: -20°C / +30°C
(2) When normally running: 0°C / +30°C
(3) Use air throw as a base. Air throw is affected by many factors such as height of room, product storage, location of evaporator, etc.w
