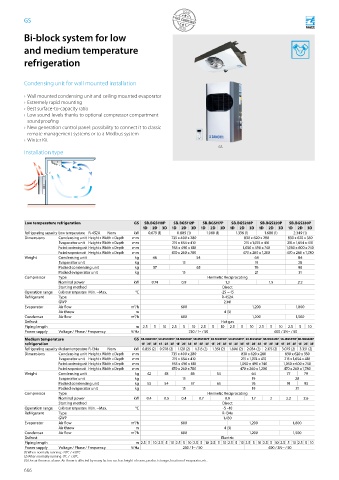

GS

Bi-block system for low

and medium temperature
refrigeration

Condensing unit for wall mounted installation
› Wall mounted condensing unit and ceiling mounted evaporator
› Extremely rapid mounting
› Best surface-to-capacity ratio
› Low sound levels thanks to optional compressor compartment
soundproofing
› New generation control panel: possibility to connect it to classic
remote management systems or to a Modbus system
› Winter Kit
GS
Installation type

Low temperature refrigeration GS SB.BGS110P SB.BGS112P SB.BGS117P SB.BGS218P SB.BGS220P SB.BGS330P
1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D 1D 2D 3D
Refrigerating capacity Low temperature R-452A Nom kW 0.679 (1) 0.889 (1) 1.080 (1) 1.336 (1) 1.688 (1) 2.349 (1)
Dimensions Condensing unit Height x Width x Depth mm 735 x 400 x 280 830 x 620 x 280 830 x 620 x 350
Evaporator unit Height x Width x Depth mm 215 x 654 x 410 215 x 1,074 x 410 215 x 1,654 x 410
Packed condensing unit Height x Width x Depth mm 955 x 490 x 610 1,050 x 490 x 740 1,050 x 600 x 740
Packed evaporator unit Height x Width x Depth mm 470 x 260 x 780 470 x 260 x 1,200 470 x 260 x 1,780
Weight Condensing unit kg 46 54 64 84
Evaporator unit kg 13 19 28
Packed condensing unit kg 57 65 76 98
Packed evaporator unit kg 15 21 31
Compressor Type Hermetic Reciprocating
Nominal power kW 0.74 0.9 1.3 1.5 2.2
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -25 ~-15
Refrigerant Type R-452A
GWP 2,141
Evaporator Air flow m³/h 600 1,200 1,800
Air throw m 4 (3)
Condenser Air flow m³/h 600 1,200 1,500
Defrost Hot gas
Piping length m 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Voltage / Phase / Frequency V/Hz 230 / 1~ / 50 400 / 3N~ / 50
Medium temperature GS SB.MGS103P SB.MGS105P SB.MGS106P SB.MGS107P SB.MGS110P SB.MGS211P SB.MGS212P SB.MGS213P SB.MGS315P SB.MGS320P
refrigeration 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E 1E 2E 3E
Refrigerating capacity Medium temperature R-134a Nom kW 0.855 (2) 0.978 (2) 1.120 (2) 1.315 (2) 1.351 (2) 1.806 (2) 2.034 (2) 2.175 (2) 3.079 (2) 3.351 (2)
Dimensions Condensing unit Height x Width x Depth mm 735 x 400 x 280 830 x 620 x 280 830 x 620 x 350
Evaporator unit Height x Width x Depth mm 215 x 654 x 410 215 x 1,074 x 410 215 x 1,654 x 410
Packed condensing unit Height x Width x Depth mm 955 x 490 x 610 1,050 x 490 x 740 1,050 x 600 x 740
Packed evaporator unit Height x Width x Depth mm 470 x 260 x 780 470 x 260 x 1,200 470 x 260 x 1,780
Weight Condensing unit kg 42 43 46 54 64 77 79
Evaporator unit kg 13 19 28
Packed condensing unit kg 53 54 57 65 76 91 93
Packed evaporator unit kg 15 19 31
Compressor Type Hermetic Reciprocating
Nominal power kW 0.4 0.5 0.4 0.7 0.9 1.7 2 2.2 2.6
Starting method Direct
Operation range Cold room temperature Min. ~Max. °C -5 ~10
Refrigerant Type R-134a
GWP 1,430
Evaporator Air flow m³/h 600 1,200 1,800
Air throw m 4 (3)
Condenser Air flow m³/h 600 1,200 1,500
Defrost Electric
Piping length m 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Voltage / Phase / Frequency V/Hz 230 / 1~ / 50 400 / 3N~ / 50
(1) When normally running: -20°C / +30°C
(2) When normally running: 0°C / +30°C
(3) Use air throw as a base. Air throw is affected by many factors such as height of room, product storage, location of evaporator, etc.
