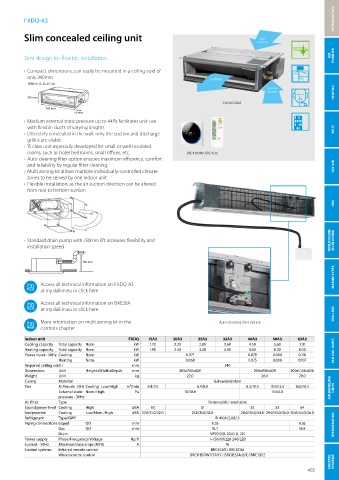

INTRODUCTION

FXDQ-A3

Slim concealed ceiling unit rear
suction

Slim design for flexible installation AIR PURIFIER

› Compact dimensions, can easily be mounted in a ceiling void of
only 240mm outblow
SERIE A (15, 20, 25, 32)
bottom
suction HEATING
200 mm
FXDQ15-32A3
700 mm
50 mm
› Medium external static pressure up to 44Pa facilitates unit use
with flexible ducts of varying lengths SPLIT
› Discretely concealed in the wall: only the suction and discharge
grilles are visible
› 15 class unit especially developed for small or well-insulated
rooms, such as hotel bedrooms, small offices, etc. BRC1H519W7, BRC4C65
› Auto cleaning filter option ensures maximum efficiency, comfort
and reliability by regular filter cleaning SKY AIR
› Multi zoning kit allows multiple individually-controlled climate
zones to be served by one indoor unit
› Flexible installation, as the air suction direction can be altered
from rear to bottom suction

VRV

VENTILATION & BID- DLE AIR CURTAINS
› Standard drain pump with 750mm lift increases flexibility and
installation speed

750 mm
MARINE TYPES

Access all technical information on FXDQ-A3
at my.daikin.eu or click here

Access all technical information on BAE20A
at my.daikin.eu or click here CHILLERS

More information on multi zoning kit in the Auto cleaning filter option
controls chapter

Indoor unit FXDQ 15A3 20A3 25A3 32A3 40A3 50A3 63A3
Cooling capacity Total capacity Nom. kW 1.70 2.20 2.80 3.60 4.50 5.60 7.10
Heating capacity Total capacity Nom. kW 1.90 2.50 3.20 4.00 5.00 6.30 8.00 FAN COIL UNITS
Power input - 50Hz Cooling Nom. kW 0.071 0.078 0.099 0.110
Heating Nom. kW 0.068 0.075 0.096 0.107
Required ceiling void > mm 240
Dimensions Unit HeightxWidthxDepth mm 200x750x620 200x950x620 200x1,150x620
Weight Unit kg 22.0 26.0 29.0
Casing Material Galvanised steel
Fan Air flow rate - 50Hz Cooling Low/High m³/min 6.4/7.5 6.4/8.0 8.5/10.5 10.0/12.5 13.0/16.5 AIR HANDLING UNITS
External static Nom./High Pa 10/30.0 15/44.0
pressure - 50Hz
Air filter Type Removable / washable
Sound power level Cooling High dBA 50 51 52 53 54
Sound pressure level Cooling Low/Nom./High dBA 27.0/31.0/32.0 27.0/31.0/33.0 28.0/32.0/34.0 29.0/33.0/35.0 30.0/34.0/36.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 9.52 REFRIGERATION
Gas OD mm 12.7 15.9
Drain VP20 (I.D. 20/O.D. 26)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC4C65 / BRC4C66
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C/ BRC1D52
CONTROL SYSTEMS
455
