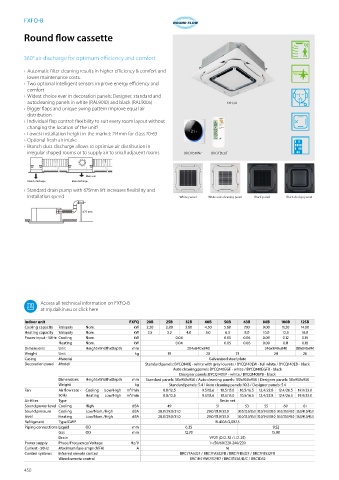

Page 452 - General Catalogue

FXFQ-B

Round flow cassette

360° air discharge for optimum efficiency and comfort

› Automatic filter cleaning results in higher efficiency & comfort and
lower maintenance costs.
› Two optional intelligent sensors improve energy efficiency and
comfort
› Widest choice ever in decoration panels: Designer, standard and
autocleaning panels in white (RAL9010) and black (RAL9005) FXFQ-B
› Bigger flaps and unique swing pattern improve equal air
distribution
› Individual flap control: flexibility to suit every room layout without
changing the location of the unit!
› Lowest installation height in the market: 214mm for class 20-63
› Optional fresh air intake
› Branch duct discharge allows to optimize air distribution in
irregular shaped rooms or to supply air to small adjacent rooms BRC1H519W7 BRC7FB532F

Main unit
Branch discharge Main discharge
› Standard drain pump with 675mm lift increases flexibility and
installation speed White panel White auto cleaning panel Black panel Black design panel

675 mm

Access all technical information on FXFQ-B
at my.daikin.eu or click here

Indoor unit FXFQ 20B 25B 32B 40B 50B 63B 80B 100B 125B
Cooling capacity Total capacity Nom. kW 2.20 2.80 3.60 4.50 5.60 7.10 9.00 11.20 14.00
Heating capacity Total capacity Nom. kW 2.5 3.2 4.0 5.0 6.3 8.0 10.0 12.5 16.0
Power input - 50Hz Cooling Nom. kW 0.04 0.05 0.06 0.09 0.12 0.19
Heating Nom. kW 0.04 0.05 0.06 0.09 0.11 0.18
Dimensions Unit HeightxWidthxDepth mm 204x840x840 246x840x840 288x840x840
Weight Unit kg 19 20 21 24 26
Casing Material Galvanised steel plate
Decoration panel Model Standard panels: BYCQ140E - white with grey louvers / BYCQ140EW - full white / BYCQ140EB - black
Auto cleaning panels BYCQ140EGF - white / BYCQ140EGFB - black
Designer panels: BYCQ140EP - white / BYCQ140EPB - black
Dimensions HeightxWidthxDepth mm Standard panels: 50x950x950 / Auto cleaning panels: 130x950x950 / Designer panels: 50x950x950
Weight kg Standard panels: 5.4 / Auto cleaning panels: 10.3 / Designer panels: 5.4
Fan Air flow rate - Cooling Low/High m³/min 8.8/12.5 9.5/13.6 10.5/15.0 10.5/16.5 12.4/22.8 12.4/26.5 19.9/33.0
50Hz Heating Low/High m³/min 8.8/12.5 9.5/13.6 10.5/15.0 10.5/16.5 12.4/22.8 12.4/26.5 19.9/33.0
Air filter Type Resin net
Sound power level Cooling High dBA 49 51 53 55 60 61
Sound pressure Cooling Low/Nom./High dBA 28.0/29.0/31.0 29.0/31.0/33.0 30.0/33.0/35.0 30.0/34.0/38.0 30.0/37.0/43.0 36.0/41.0/45.0
level Heating Low/Nom./High dBA 28.0/29.0/31.0 29.0/31.0/33.0 30.0/33.0/35.0 30.0/34.0/38.0 30.0/37.0/43.0 36.0/41.0/45.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 9.52
Gas OD mm 12.70 15.90
Drain VP25 (O.D. 32 / I.D. 25)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7FA532F / BRC7FA532FB / BRC7FB532F / BRC7FB532FB
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C / BRC1D52
