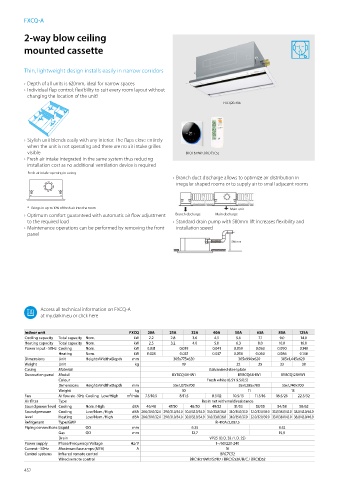

FXCQ-A

2-way blow ceiling

mounted cassette

Thin, lightweight design installs easily in narrow corridors

› Depth of all units is 620mm, ideal for narrow spaces
› Individual flap control: flexibility to suit every room layout without
changing the location of the unit!
FXCQ20-40A

› Stylish unit blends easily with any interior. The flaps close entirely
when the unit is not operating and there are no air intake grilles
visible BRC1H519W7, BRC7F5C52
› Fresh air intake integrated in the same system thus reducing
installation cost as no additional ventilation device is required
Fresh air intake opening in casing
› Branch duct discharge allows to optimize air distribution in
irregular shaped rooms or to supply air to small adjacent rooms

* Brings in up to 10% of fresh air into the room Main unit
› Optimum comfort guaranteed with automatic air flow adjustment Branch discharge Main discharge
to the required load › Standard drain pump with 580mm lift increases flexibility and
› Maintenance operations can be performed by removing the front installation speed
panel
580 mm

Access all technical information on FXCQ-A
at my.daikin.eu or click here

Indoor unit FXCQ 20A 25A 32A 40A 50A 63A 80A 125A
Cooling capacity Total capacity Nom. kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 14.0
Heating capacity Total capacity Nom. kW 2.5 3.2 4.0 5.0 6.3 8.0 10.0 16.0
Power input - 50Hz Cooling Nom. kW 0.031 0.039 0.041 0.059 0.063 0.090 0.149
Heating Nom. kW 0.028 0.035 0.037 0.056 0.060 0.086 0.146
Dimensions Unit HeightxWidthxDepth mm 305x775x620 305x990x620 305x1,445x620
Weight Unit kg 19 22 25 33 38
Casing Material Galvanised steel plate
Decoration panel Model BYBCQ40HW1 BYBCQ63HW1 BYBCQ125HW1
Colour Fresh white (6.5Y 9.5/0.5)
Dimensions HeightxWidthxDepth mm 55x1,070x700 55x1,285x700 55x1,740x700
Weight kg 10 11 13
Fan Air flow rate - 50Hz Cooling Low/High m³/min 7.5/10.5 8/11.5 8.5/12 10.5/15 11.5/16 18.5/26 22.5/32
Air filter Type Resin net with mold resistance
Sound power level Cooling Nom./High dBA 46/48 47/50 48/50 49/52 51/53 53/55 54/58 58/62
Sound pressure Cooling Low/Nom./High dBA 28.0/30.0/32.0 29.0/31.0/34.0 30.0/32.0/34.0 31.0/33.0/36.0 31.0/35.0/37.0 32.0/37.0/39.0 33.0/38.0/42.0 38.0/42.0/46.0
level Heating Low/Nom./High dBA 28.0/30.0/32.0 29.0/31.0/34.0 30.0/32.0/34.0 31.0/33.0/36.0 31.0/35.0/37.0 32.0/37.0/39.0 33.0/38.0/42.0 38.0/42.0/46.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 9.52
Gas OD mm 12.7 15.9
Drain VP25 (O.D. 32 / I.D. 25)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7C52
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C / BRC1D52
452
