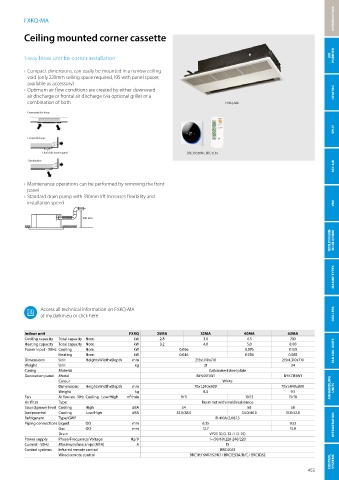

FXKQ-MA

Ceiling mounted corner cassette

1-way blow unit for corner installation AIR PURIFIER

› Compact dimensions, can easily be mounted in a narrow ceiling
void (only 220mm ceiling space required, 195 with panel spacer,
available as accessory)
› Optimum air flow conditions are created by either downward
air discharge or frontal air discharge (via optional grille) or a HEATING
combination of both FXKQ-MA
Downward discharge

SPLIT

Frontal discharge

Closed decoration panel BRC1H519W7, BRC4C61
Combination
SKY AIR

› Maintenance operations can be performed by removing the front
panel
› Standard drain pump with 330mm lift increases flexibility and
installation speed VRV

330 mm

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

Access all technical information on FXKQ-MA
at my.daikin.eu or click here CHILLERS

Indoor unit FXKQ 25MA 32MA 40MA 63MA
Cooling capacity Total capacity Nom. kW 2.8 3.6 4.5 7.10
Heating capacity Total capacity Nom. kW 3.2 4.0 5.0 8.00
Power input - 50Hz Cooling Nom. kW 0.066 0.076 0.105 FAN COIL UNITS
Heating Nom. kW 0.046 0.056 0.085
Dimensions Unit HeightxWidthxDepth mm 215x1,110x710 215x1,310x710
Weight Unit kg 31 34
Casing Material Galvanised steel plate
Decoration panel Model BYK45FJW1 BYK71FJW1
Colour White
Dimensions HeightxWidthxDepth mm 70x1,240x800 70x1,440x800 AIR HANDLING UNITS
Weight kg 8.5 9.5
Fan Air flow rate - 50Hz Cooling Low/High m³/min 9/11 10/13 15/18
Air filter Type Resin net with mold resistance
Sound power level Cooling High dBA 54 56 58
Sound pressure level Cooling Low/High dBA 33.0/38.0 34.0/40.0 37.0/42.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 9.52 REFRIGERATION
Gas OD mm 12.7 15.9
Drain VP25 (O.D. 32 / I.D. 25)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220
Current - 50Hz Maximum fuse amps (MFA) A 15
Control systems Infrared remote control BRC4C61
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C / BRC1D52
