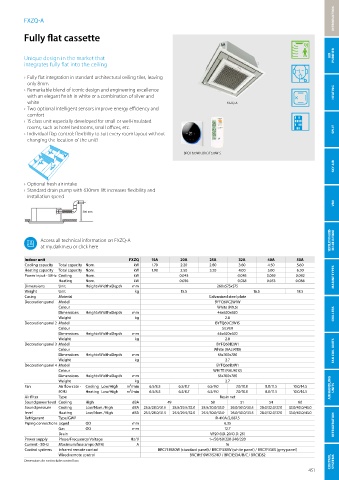

INTRODUCTION

FXZQ-A

Fully flat cassette

Unique design in the market that AIR PURIFIER
integrates fully flat into the ceiling

› Fully flat integration in standard architectural ceiling tiles, leaving
only 8mm
› Remarkable blend of iconic design and engineering excellence
with an elegant finish in white or a combination of silver and HEATING
white FXZQ-A
› Two optional intelligent sensors improve energy efficiency and
comfort
› 15 class unit especially developed for small or well-insulated
rooms, such as hotel bedrooms, small offices, etc. SPLIT
› Individual flap control: flexibility to suit every room layout without
changing the location of the unit!

BRC1H519W7, BRC7F530W-S
SKY AIR

› Optional fresh air intake
› Standard drain pump with 630mm lift increases flexibility and
installation speed
VRV
500 mm

VENTILATION & BID- DLE AIR CURTAINS
Access all technical information on FXZQ-A
at my.daikin.eu or click here

Indoor unit FXZQ 15A 20A 25A 32A 40A 50A
Cooling capacity Total capacity Nom. kW 1.70 2.20 2.80 3.60 4.50 5.60
Heating capacity Total capacity Nom. kW 1.90 2.50 3.20 4.00 5.00 6.30
Power input - 50Hz Cooling Nom. kW 0.043 0.045 0.059 0.092 MARINE TYPES
Heating Nom. kW 0.036 0.038 0.053 0.086
Dimensions Unit HeightxWidthxDepth mm 260x575x575
Weight Unit kg 15.5 16.5 18.5
Casing Material Galvanised steel plate
Decoration panel Model BYFQ60C2W1W
Colour White (N9.5)
Dimensions HeightxWidthxDepth mm 46x620x620 CHILLERS
Weight kg 2.8
Decoration panel 2 Model BYFQ60C2W1S
Colour SILVER
Dimensions HeightxWidthxDepth mm 46x620x620
Weight kg 2.8
Decoration panel 3 Model BYFQ60B2W1
Colour White (RAL9010) FAN COIL UNITS
Dimensions HeightxWidthxDepth mm 55x700x700
Weight kg 2.7
Decoration panel 4 Model BYFQ60B3W1
Colour WHITE (RAL9010)
Dimensions HeightxWidthxDepth mm 55x700x700
Weight kg 2.7
Fan Air flow rate - Cooling Low/High m³/min 6.5/8.5 6.5/8.7 6.5/9.0 7.0/10.0 8.0/11.5 10.0/14.5 AIR HANDLING UNITS
50Hz Heating Low/High m³/min 6.5/8.5 6.5/8.7 6.5/9.0 7.0/10.0 8.0/11.5 10.0/14.5
Air filter Type Resin net
Sound power level Cooling High dBA 49 50 51 54 60
Sound pressure Cooling Low/Nom./High dBA 25.5/28.0/31.5 25.5/29.5/32.0 25.5/30.0/33.0 26.0/30.0/33.5 28.0/32.0/37.0 33.0/40.0/43.0
level Heating Low/Nom./High dBA 25.5/28.0/31.5 25.5/29.5/32.0 25.5/30.0/33.0 26.0/30.0/33.5 28.0/32.0/37.0 33.0/40.0/43.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 REFRIGERATION
Gas OD mm 12.7
Drain VP20 (I.D. 20/O.D. 26)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7EB530W (standard panel) / BRC7F530W (white panel) / BRC7F530S (grey panel)
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C / BRC1D52
Dimensions do not include control box CONTROL SYSTEMS
