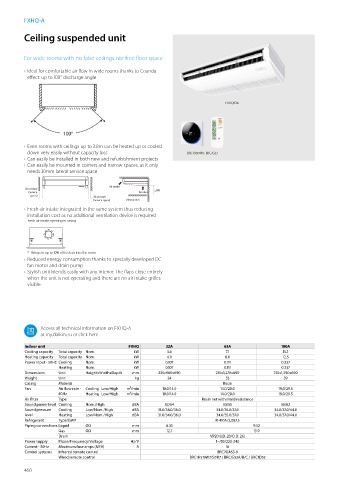

FXHQ-A

Ceiling suspended unit

For wide rooms with no false ceilings nor free floor space

› Ideal for comfortable air flow in wide rooms thanks to Coanda
effect: up to 100° discharge angle

FXHQ63A

› Even rooms with ceilings up to 3.8m can be heated up or cooled
down very easily without capacity loss BRC1H519W7, BRC7G53
› Can easily be installed in both new and refurbishment projects
› Can easily be mounted in corners and narrow spaces, as it only
needs 30mm lateral service space
////////////////////////////////////////////
Air outlet
30 or more //////////////////////////////////// ≥300
(Service Air inlet
//////////////////////
//////////////////////
space) 30 or more ////////////////////////////
(Service space) Obstruction
› Fresh air intake integrated in the same system thus reducing
installation cost as no additional ventilation device is required
Fresh air intake opening in casing

* Brings in up to 10% of fresh air into the room
› Reduced energy consumption thanks to specially developed DC
fan motor and drain pump
› Stylish unit blends easily with any interior. The flaps close entirely
when the unit is not operating and there are no air intake grilles
visible

Access all technical information on FXHQ-A
at my.daikin.eu or click here
Indoor unit FXHQ 32A 63A 100A
Cooling capacity Total capacity Nom. kW 3.6 7.1 11.2
Heating capacity Total capacity Nom. kW 4.0 8.0 12.5
Power input - 50Hz Cooling Nom. kW 0.107 0.111 0.237
Heating Nom. kW 0.107 0.111 0.237
Dimensions Unit HeightxWidthxDepth mm 235x960x690 235x1,270x690 235x1,590x690
Weight Unit kg 24 33 39
Casing Material Resin
Fan Air flow rate - Cooling Low/High m³/min 10.0/14.0 14.0/20.0 19.0/29.5
50Hz Heating Low/High m³/min 10.0/14.0 14.0/20.0 19.0/29.5
Air filter Type Resin net with mold resistance
Sound power level Cooling Nom./High dBA 52/54 53/55 55/62
Sound pressure Cooling Low/Nom./High dBA 31.0/34.0/36.0 34.0/35.0/37.0 34.0/37.0/44.0
level Heating Low/Nom./High dBA 31.0/34.0/36.0 34.0/35.0/37.0 34.0/37.0/44.0
Refrigerant Type/GWP R-410A/2,087.5
Piping connections Liquid OD mm 6.35 9.52
Gas OD mm 12.7 15.9
Drain VP20 (I.D. 20/O.D. 26)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7GA53-9
Wired remote control BRC1H519W7/S7/K7 / BRC1E53A/B/C / BRC1D52
