Подробные технические чертежи VRV, ВСТУПЛЕНИЕ

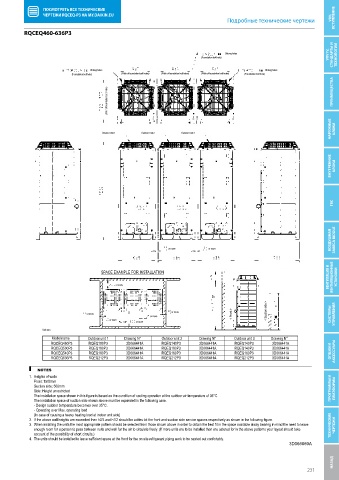

RQCEQ460-636P3

RQCEQ460-636P3
VRV IV, СТАНДАРТЫ И ТЕХНОЛОГИИ
Oblong holes
(Foundation bolt hole)

Oblong holes Oblong holes
(Foundation bolt hole) (Pitch of foundation bolt holes) (Pitch of foundation bolt holes) (Pitch of foundation bolt holes) (Foundation bolt hole)

(Pitch of foundation bolt holes) ПРЕИМУЩЕСТВА

НАРУЖНЫЕ БЛОКИ

Outdoor Unit 1 Outdoor Unit 2 Outdoor Unit 3

ВНУТРЕННИЕ БЛОКИ

ГВС

ВОЗДУШНАЯ ЗАВЕСА BIDDLE

or more or more

ВЕНТИЛЯЦИЯ И ВЕНТИЛЯЦИОННЫЕ УСТАНОВКИ
SPACE EXAMPLE FOR INSTALLATION

or more

or more < Suction side >
or more < Front > СИСТЕМЫ УПРАВЛЕНИЯ
or more
or more
or more
Unit:mm
Model name Outdoor unit 1 Drawing N° Outdoor unit 2 Drawing N° Outdoor unit 3 Drawing N°
RQCEQ460P3 RQEQ180P3 3D066441A RQEQ140P3 3D066441A RQEQ140P3 3D066441A
RQCEQ500P3 RQEQ180P3 3D066441A RQEQ180P3 3D066441A RQEQ140P3 3D066441A
RQCEQ540P3 RQEQ180P3 3D066441A RQEQ180P3 3D066441A RQEQ180P3 3D066441A ОПЦИИ И АКСЕССУАРЫ
RQCEQ636P3 RQEQ212P3 3D066441A RQEQ212P3 3D066441A RQEQ212P3 3D066441A
NOTES
1. Heights of walls
Front: 1500mm
Suction side: 500mm ПРОГРАММЫ И ПЛАТФОРМЫ
Side: Height unrestricted
The installation space shown in this figure is based on the condition of cooling operation at the outdoor air temperature of 35°C.
The installation space of suction side shown above must be expanded in the following case.
- Design outdoor temperature becomes over 35°C.
- Operating over Max. operating load
(In case of causing a heavy heating load at indoor unit side)
2. If the above wall heights are exceeded then h2/2 and h1/2 should be addes tot the front and suction side service spaces respectively as shown in the following figure.
3. When installing the units the most appropriate pattern should be selected from those shown above in order to obtain the best fit in the space available alway bearing in mind the need to leave ТЕХНИЧЕСКИЕ ЧЕРТЕЖИ
enough room for a person to pass between nuits and wall for the air to circulate freely. (If more units are to be installed than are catered for in the above patterns your layout should take
account of the possibility of short circuits.)
4. The units should be installed to leave sufficient space at the front for the on site refrigerant piping work to be carried out confortably.
3D066860A
