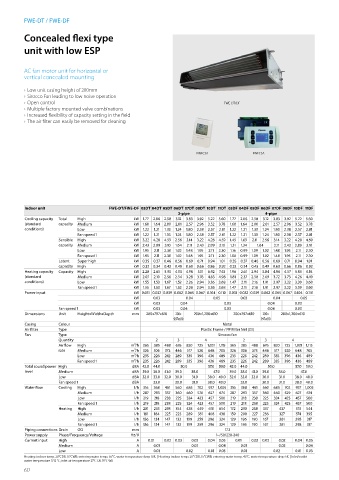

Page 614 - General Catalogue

FWE-DT / FWE-DF

Concealed flexi type

unit with low ESP

AC fan motor unit for horizontal or
vertical concealed mounting

› Low unit casing height of 200mm
› Sirocco Fan leading to low noise operation
› Open control FWE-DT/DF
› Multiple factory mounted valve combinations
› Increased flexibility of capacity setting in the field
› The air filter can easily be removed for cleaning

FWEC3A FWECSA

Indoor unit FWE-DT/FWE-DF 03DT 04DT 05DT 06DT 07DT 08DT 10DT 11DT 03DF 04DF 05DF 06DF 07DF 08DF 10DF 11DF
2-pipe 4-pipe
Cooling capacity Total High kW 1.77 2.06 2.58 3.12 3.83 3.92 5.22 5.60 1.77 2.06 2.58 3.12 3.83 3.92 5.22 5.60
(standard capacity Medium kW 1.60 1.64 2.00 2.01 2.57 2.96 3.52 3.78 1.60 1.64 2.00 2.01 2.57 2.96 3.52 3.78
conditions) Low kW 1.22 1.21 1.33 1.24 1.80 2.38 2.57 2.81 1.22 1.21 1.33 1.24 1.80 2.38 2.57 2.81
Fan speed 1 kW 1.22 1.21 1.33 1.24 1.80 2.38 2.57 2.81 1.22 1.21 1.33 1.24 1.80 2.38 2.57 2.81
Sensible High kW 3.22 4.28 4.59 2.56 3.14 3.22 4.28 4.59 1.45 1.69 2.11 2.56 3.14 3.22 4.28 4.59
capacity Medium kW 2.43 2.89 3.10 1.64 2.11 2.43 2.89 3.10 1.31 1.34 1.64 2.11 2.43 2.89 3.10
Low kW 1.95 2.11 2.30 1.02 1.48 1.95 2.11 2.30 1.16 0.99 1.09 1.02 1.48 1.95 2.11 2.30
Fan speed 1 kW 1.95 2.11 2.30 1.02 1.48 1.95 2.11 2.30 1.00 0.99 1.09 1.02 1.48 1.95 2.11 2.30
Latent Super high kW 0.35 0.37 0.46 0.56 0.69 0.71 0.94 1.01 0.35 0.37 0.46 0.56 0.69 0.71 0.94 1.01
capacity High kW 0.32 0.34 0.43 0.49 0.60 0.66 0.86 0.92 0.32 0.34 0.43 0.49 0.60 0.66 0.86 0.92
Heating capacity Capacity High kW 2.28 2.65 3.33 4.03 4.98 5.11 6.92 7.43 1.96 2.61 2.94 3.84 4.96 4.57 5.83 6.18
(standard Medium kW 2.07 2.10 2.56 2.54 3.28 3.76 4.63 4.98 1.81 2.37 2.58 2.69 3.72 3.73 4.26 4.49
conditions) Low kW 1.55 1.53 1.67 1.52 2.26 2.94 3.36 3.68 1.47 2.11 2.16 1.91 2.97 3.22 3.39 3.60
Fan speed 1 kW 1.55 1.53 1.67 1.52 2.26 2.94 3.36 3.68 1.47 2.11 2.16 1.91 2.97 3.22 3.39 3.60
Power input kW 0.031 0.032 0.039 0.062 0.065 0.067 0.104 0.110 0.031 0.032 0.039 0.062 0.065 0.067 0.104 0.110
kW 0.03 0.04 0.05 0.03 0.04 0.05
kW 0.03 0.04 0.03 0.04 0.03
Fan speed 1 kW 0.03 0.04 0.03 0.04 0.03
Dimensions Unit HeightxWidthxDepth mm 200x797x610 200x 200x1,200x610 200x797x610 200x 200x1,200x610
997x610 997x610
Casing Colour Metal
Air filter Type Plastic Frame / PP Filter Net (G1)
Fan Type Sirocco fan
Quantity 2 3 4 2 3 4
Air flow High m³/h 365 385 488 676 820 725 1,031 1,115 365 385 488 676 820 725 1,031 1,115
rate Medium m³/h 326 306 373 446 517 520 648 705 326 306 373 446 517 520 648 705
Low m³/h 235 226 242 289 335 396 436 489 235 226 242 289 335 396 436 489
Fan speed 1 m³/h 235 226 242 289 335 396 436 489 235 226 242 289 335 396 436 489
Total sound power High dBA 42.0 44.0 50.0 57.0 59.0 42.0 44.0 50.0 57.0 59.0
level Medium dBA 39.0 38.0 41.0 39.0 38.0 47.0 39.0 38.0 41.0 39.0 38.0 47.0
Low dBA 32.0 33.0 32.0 30.0 31.0 38.0 40.0 32.0 33.0 32.0 30.0 31.0 38.0 40.0
Fan speed 1 dBA 33.0 30.0 31.0 38.0 40.0 33.0 30.0 31.0 38.0 40.0
Water flow Cooling High l/h 316 368 461 560 685 702 937 1,005 316 368 461 560 685 702 937 1,005
Medium l/h 287 293 357 360 460 570 627 674 287 293 357 360 460 529 627 674
Low l/h 219 218 238 225 324 423 457 500 219 218 238 225 324 423 457 500
Fan speed 1 l/h 219 218 238 225 324 423 457 500 219 218 238 225 324 423 457 500
Heating High l/h 201 233 293 354 438 449 610 654 172 230 258 337 437 513 544
Medium l/h 181 184 225 223 289 331 408 438 159 208 227 236 327 374 395
Low l/h 136 134 147 133 199 259 296 324 129 186 190 167 261 298 317
Fan speed 1 l/h 136 134 147 133 199 259 296 324 129 186 190 167 261 298 317
Piping connections Drain OD mm 17.3
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
Current input High A 0.01 0.02 0.03 0.02 0.04 0.05 0.01 0.02 0.03 0.02 0.04 0.05
Medium A 0.01 0.02 0.04 0.01 0.02 0.04
Low A 0.01 0.02 0.01 0.03 0.01 0.02 0.01 0.03
Heating: indoor temp. 20°CDB, 15°CWB; entering water temp. 65°C, water temperature drop 10K. | Heating: indoor temp. 20°CDB, 15°CWB; entering water temp. 45°C, water temperature drop 5K. | Inlet/outlet
water temperature 7/12 °C; inlet air temperature 27°C DB 19°C WB
612
