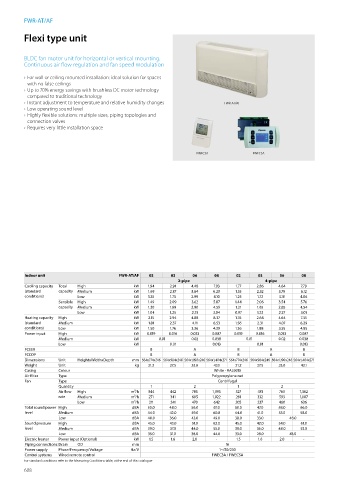

Page 610 - General Catalogue

FWR-AT/AF

Flexi type unit

BLDC fan motor unit for horizontal or vertical mounting.
Continuous air flow regulation and fan speed modulation

› For wall or ceiling mounted installation: ideal solution for spaces
with no false ceilings
› Up to 70% energy savings with brushless DC motor technology
compared to traditional technology
› Instant adjustment to temperature and relative humidity changes FWR-AT/AF
› Low operating sound level
› Highly flexible solutions: multiple sizes, piping topologies and
connection valves
› Requires very little installation space

FWEC3A FWECSA

Indoor unit FWR-AT/AF 02 03 06 08 02 03 06 08
2-pipe 4-pipe
Cooling capacity Total High kW 1.94 2.91 4.48 7.93 1.77 2.86 4.64 7.79
(standard capacity Medium kW 1.69 2.37 3.64 6.20 1.55 2.32 3.79 6.12
conditions) Low kW 1.35 1.75 2.99 4.10 1.25 1.72 3.10 4.06
Sensible High kW 1.49 2.09 3.62 5.87 1.44 2.06 3.54 5.76
capacity Medium kW 1.30 1.69 2.90 4.59 1.21 1.65 2.85 4.54
Low kW 1.04 1.25 2.31 3.04 0.97 1.23 2.27 3.01
Heating capacity High kW 2.15 2.94 4.88 8.37 1.76 2.68 4.64 7.35
(standard Medium kW 1.81 2.37 4.11 6.53 1.56 2.31 4.07 6.29
conditions) Low kW 1.50 1.76 3.36 4.39 1.36 1.88 3.55 4.85
Power input High kW 0.019 0.016 0.033 0.087 0.019 0.016 0.033 0.087
Medium kW 0.01 0.02 0.038 0.01 0.02 0.038
Low kW 0.01 0.013 0.01 0.013
FCEER B A B A B
FCCOP B A B A B
Dimensions Unit HeightxWidthxDepth mm 564x774x246 564x984x246 564x1,190x246 564x1,404x271 564x774x246 564x984x246 564x1,190x246 564x1,404x271
Weight Unit kg 21.2 27.5 33.6 43.1 21.2 27.5 33.6 43.1
Casing Colour White - RAL9010
Air filter Type Polypropylene net
Fan Type Centrifugal
Quantity 1 2 1 2
Air flow High m³/h 344 442 785 1,393 327 431 763 1,362
rate Medium m³/h 271 341 605 1,022 261 332 593 1,007
Low m³/h 211 241 470 642 205 237 460 636
Total sound power High dBA 50.0 48.0 56.0 67.0 50.0 47.0 58.0 66.0
level Medium dBA 44.0 42.0 49.0 60.0 44.0 41.0 53.0 58.0
Low dBA 40.0 36.0 43.0 49.0 38.0 33.0 48.0
Sound pressure High dBA 45.0 43.0 51.0 62.0 45.0 42.0 54.0 61.0
level Medium dBA 39.0 37.0 44.0 55.0 39.0 36.0 48.0 53.0
Low dBA 35.0 31.0 38.0 44.0 33.0 28.0 43.0
Electric heater Power input (Optional) kW 1.5 1.6 2.0 - 1.5 1.6 2.0 -
Piping connections Drain OD mm 16
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Control systems Wired remote control FWEC3A / FWECSA
For standard conditions refer to the Measuring Conditions table, at the end of this catalogue
