INTRODUCTION

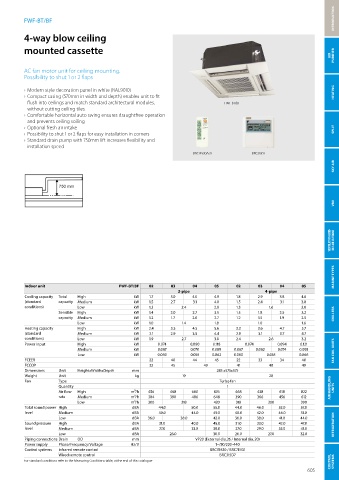

FWF-BT/BF
4-way blow ceiling
mounted cassette
AIR PURIFIER
AC fan motor unit for ceiling mounting.
Possibility to shut 1 or 2 flaps
› Modern style decoration panel in white (RAL9010) HEATING
› Compact casing (570mm in width and depth) enables unit to fit
flush into ceilings and match standard architectural modules, FWF-BT/BF
without cutting ceiling tiles
› Comfortable horizontal auto swing ensures draughtfree operation
and prevents ceiling soiling
› Optional fresh air intake SPLIT
› Possibility to shut 1 or 2 flaps for easy installation in corners
› Standard drain pump with 750mm lift increases flexibility and
installation speed
BRC7E530/531 BRC315D7
SKY AIR
VRV
VENTILATION & BID- DLE AIR CURTAINS
MARINE TYPES
Indoor unit FWF-BT/BF 02 03 04 05 02 03 04 05
2-pipe 4-pipe
Cooling capacity Total High kW 1.7 3.0 4.0 4.9 1.8 2.9 3.8 4.6
(standard capacity Medium kW 1.5 2.7 3.1 4.0 1.5 2.4 3.1 3.8
conditions) Low kW 1.3 2.4 2.8 1.3 1.6 2.6
Sensible High kW 1.4 2.0 2.7 3.5 1.5 1.8 2.5 3.2 CHILLERS
capacity Medium kW 1.2 1.7 2.0 2.7 1.2 1.5 1.9 2.5
Low kW 1.0 1.4 1.8 1.0 1.6
Heating capacity High kW 2.4 3.3 4.5 5.6 3.3 3.6 4.7 5.7
(standard Medium kW 2.1 2.9 3.5 4.4 2.9 3.1 3.7 4.7
conditions) Low kW 1.9 2.7 3.0 2.4 2.6 3.2
Power input High kW 0.074 0.090 0.118 0.074 0.094 0.121
Medium kW 0.067 0.070 0.089 0.067 0.062 0.074 0.093 FAN COIL UNITS
Low kW 0.060 0.055 0.062 0.060 0.055 0.066
FCEER 22 40 44 45 22 33 34 40
FCCOP 32 45 49 41 48 49
Dimensions Unit HeightxWidthxDepth mm 285 x575x575
Weight Unit kg 19 20
Fan Type Turbo fan
Quantity 1 AIR HANDLING UNITS
Air flow High m³/h 456 468 660 876 468 438 618 822
rate Medium m³/h 384 390 486 648 390 366 456 612
Low m³/h 300 318 420 318 300 390
Total sound power High dBA 44.0 50.0 55.0 44.0 46.0 52.0 57.0
level Medium dBA 40.0 44.0 49.0 40.0 42.0 46.0 51.0
Low dBA 36.0 38.0 42.0 36.0 38.0 41.0 44.0
Sound pressure High dBA 31.0 40.0 45.0 31.0 33.0 42.0 47.0 REFRIGERATION
level Medium dBA 27.0 33.0 39.0 27.0 29.0 35.0 41.0
Low dBA 26.0 30.0 26.0 27.0 32.0
Piping connections Drain OD mm VP20 (External dia.26 / Internal dia. 20)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-440
Control systems Infrared remote control BRC7E530 / BRC7E531
Wired remote control BRC315D7
For standard conditions refer to the Measuring Conditions table, at the end of this catalogue CONTROL SYSTEMS
