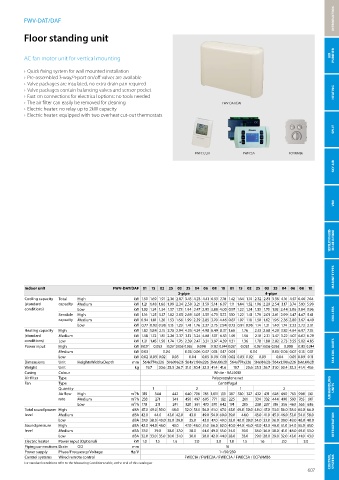

Page 609 - General Catalogue

INTRODUCTION

FWV-DAT/DAF

Floor standing unit

AC fan motor unit for vertical mounting AIR PURIFIER

› Quick fixing system for wall mounted installation
› Pre-assembled 3-way/4-port on/off valves are available
› Valve packages are insulated, no extra drain pan required
› Valve packages contain balancing valves and sensor pocket HEATING
› Fast-on connections for electrical options: no tools needed
› The air filter can easily be removed for cleaning FWV-DAT/DAF
› Electric heater: no relay up to 2kW capacity
› Electric heater: equipped with two overheat cut-out thermostats
SPLIT

FWEC1,2,3A FWECSA ECFWMB6
SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

Indoor unit FWV-DAT/DAF 01 15 02 25 03 35 04 06 08 10 01 15 02 25 03 35 04 06 08 10
2-pipe 4-pipe
Cooling capacity Total High kW 1.50 1.69 1.91 2.36 2.87 3.45 4.23 4.41 6.53 7.78 1.42 1.64 1.74 2.32 2.81 3.36 4.16 4.57 6.46 7.64
(standard capacity Medium kW 1.21 1.48 1.66 1.99 2.34 2.58 3.21 3.59 5.14 6.07 1.11 1.44 1.52 1.96 2.29 2.54 3.17 3.74 5.10 5.99
conditions) Low kW 1.02 1.24 1.34 1.57 1.73 1.94 2.47 2.95 3.88 4.00 0.97 1.22 1.24 1.55 1.70 1.92 2.44 3.06 3.84 3.96
Sensible High kW 1.16 1.25 1.37 1.82 2.05 2.69 3.05 3.55 4.73 5.72 1.10 1.22 1.41 1.79 2.01 2.61 2.99 3.47 4.67 5.61 CHILLERS
capacity Medium kW 0.94 1.10 1.20 1.53 1.66 1.99 2.39 2.85 3.70 4.46 0.87 1.07 1.18 1.50 1.62 1.96 2.36 2.80 3.67 4.40
Low kW 0.77 0.93 0.98 1.15 1.23 1.41 1.76 2.27 2.75 2.94 0.73 0.91 0.96 1.14 1.21 1.40 1.74 2.23 2.73 2.91
Heating capacity High kW 1.82 1.84 2.15 2.70 2.94 4.05 4.24 4.98 6.49 8.37 1.66 1.76 2.53 2.68 4.20 3.82 4.64 6.97 7.35
(standard Medium kW 1.48 1.72 1.81 2.26 2.37 3.13 3.24 4.08 5.17 6.53 1.49 1.56 2.18 2.31 3.47 3.22 4.07 6.02 6.29
conditions) Low kW 1.21 1.45 1.50 1.74 1.76 2.39 2.47 3.31 3.97 4.39 1.31 1.36 1.78 1.88 2.82 2.73 3.55 5.02 4.85
Power input High kW 0.037 0.053 0.057 0.056 0.065 0.098 0.182 0.244 0.037 0.053 0.057 0.056 0.065 0.098 0.182 0.244
Medium kW 0.03 0.04 0.05 0.06 0.07 0.13 0.17 0.03 0.04 0.05 0.06 0.07 0.13 0.17 FAN COIL UNITS
Low kW 0.02 0.03 0.02 0.03 0.04 0.05 0.09 0.11 0.02 0.03 0.02 0.03 0.04 0.05 0.09 0.11
Dimensions Unit HeightxWidthxDepth mm 564x774x226 564x984x226 564x1,190x226 564x1,400x251 564x774x226 564x984x226 564x1,190x226 564x1,400x251
Weight Unit kg 19.7 20.6 25.5 26.7 31.0 30.4 32.3 41.4 41.6 19.7 20.6 25.5 26.7 31.0 30.4 32.3 41.4 41.6
Casing Colour White - RAL9010
Air filter Type Polypropylene net
Fan Type Centrifugal
Quantity 1 2 1 2 AIR HANDLING UNITS
Air flow High m³/h 319 344 442 640 706 785 1,011 1,393 307 330 327 432 431 628 690 763 998 1,362
rate Medium m³/h 233 271 341 450 497 605 771 1,022 225 261 334 332 444 490 593 765 1,007
Low m³/h 178 211 241 320 361 470 570 642 174 205 238 237 316 356 460 565 636
Total sound power High dBA 47.0 49.0 50.0 48.0 52.0 53.0 56.0 61.0 67.0 45.0 49.0 50.0 48.0 47.0 53.0 56.0 58.0 60.0 66.0
level Medium dBA 42.0 44.0 43.0 42.0 43.0 49.0 54.0 60.0 39.0 44.0 43.0 41.0 45.0 46.0 53.0 54.0 58.0
Low dBA 37.0 38.0 40.0 35.0 36.0 35.0 43.0 47.0 49.0 33.0 40.0 38.0 34.0 33.0 36.0 39.0 48.0 46.0 48.0
Sound pressure High dBA 42.0 44.0 45.0 43.0 47.0 48.0 51.0 56.0 62.0 40.0 44.0 45.0 43.0 42.0 46.0 51.0 54.0 55.0 61.0 REFRIGERATION
level Medium dBA 37.0 39.0 38.0 37.0 38.0 44.0 49.0 55.0 34.0 39.0 38.0 36.0 38.0 41.0 48.0 49.0 53.0
Low dBA 32.0 33.0 35.0 30.0 31.0 30.0 38.0 42.0 44.0 28.0 33.0 29.0 28.0 29.0 32.0 43.0 41.0 43.0
Electric heater Power input (Optional) kW 1.0 1.5 1.6 2.0 3.0 1.0 1.5 1.6 2.0 3.0
Piping connections Drain OD mm 16
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Control systems Wired remote control FWEC1A / FWEC2A / FWEC3A / FWECSA / ECFWMB6
For standard conditions refer to the Measuring Conditions table, at the end of this catalogue CONTROL SYSTEMS
