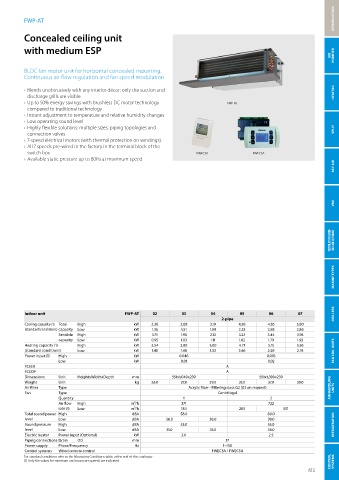

FWP-AT

Concealed ceiling unit

with medium ESP
AIR PURIFIER

BLDC fan motor unit for horizontal concealed mounting.
Continuous air flow regulation and fan speed modulation

› Blends unobtrusively with any interior décor: only the suction and HEATING
discharge grills are visible
› Up to 50% energy savings with brushless DC motor technology FWP-AT
compared to traditional technology
› Instant adjustment to temperature and relative humidity changes
› Low operating sound level
› Highly flexible solutions: multiple sizes, piping topologies and SPLIT
connection valves
› 7-speed electrical motors (with thermal protection on windings).
› All 7 speeds pre-wired in the factory in the terminal block of the
switch box FWEC3A FWECSA
› Available static pressure up to 80Pa at maximum speed
SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

Indoor unit FWP-AT 02 03 04 05 06 07 CHILLERS
2-pipe
Cooling capacity (1) Total High kW 2.38 2.88 3.19 4.58 4.85 5.80
(standard conditions) capacity Low kW 1.35 1.51 1.69 2.23 2.58 2.86
Sensible High kW 1.71 1.96 2.13 3.23 3.44 3.93
capacity Low kW 0.95 1.03 1.11 1.62 1.79 1.92
Heating capacity (1) High kW 2.54 2.80 3.00 4.71 5.15 5.56
(standard conditions) Low kW 1.40 1.48 1.53 2.46 2.59 2.74 FAN COIL UNITS
Power input (1) High kW 0.046 0.076
Low kW 0.01 0.02
FCEER A
FCCOP A
Dimensions Unit HeightxWidthxDepth mm 551x1,040x239 551x1,390x239
Weight Unit kg 26.0 27.0 29.0 35.0 37.0 39.0
Air filter Type Acrylic fiber - Filtering class G2 (G3 on request) AIR HANDLING UNITS
Fan Type Centrifugal
Quantity 1 2
Air flow High m³/h 371 722
rate (1) Low m³/h 184 283 331
Total sound power High dBA 58.0 60.0
level Low dBA 36.0 38.0 39.0
Sound pressure High dBA 53.0 55.0 REFRIGERATION
level Low dBA 31.0 33.0 34.0
Electric heater Power input (Optional) kW 2.0 2.5
Piping connections Drain OD mm 17
Power supply Phase/Frequency Hz 1~/50
Control systems Wired remote control FWEC3A / FWECSA
For standard conditions refer to the Measuring Conditions table, at the end of this catalogue
(1) Only the values for minimum and maximum speeds are indicated CONTROL SYSTEMS
