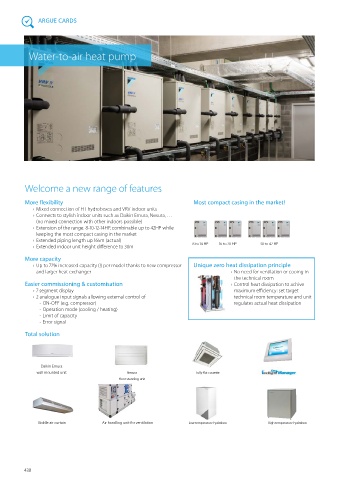

Page 440 - General Catalogue

ARGUE CARDS

Water-to-air heat pump

Welcome a new range of features

More flexibility Most compact casing in the market!
› Mixed connection of HT hydroboxes and VRV indoor units
› Connects to stylish indoor units such as Daikin Emura, Nexura, …
(no mixed connection with other indoors possible)
› Extension of the range: 8-10-12-14HP, combinable up to 42HP while
keeping the most compact casing in the market
› Extended piping length up 165m (actual)
› Extended indoor unit height difference to 30m 8 to 14 HP 16 to 28 HP 30 to 42 HP

More capacity
› Up to 72% increased capacity (!) per model thanks to new compressor Unique zero heat dissipation principle
and larger heat exchanger › No need for ventilation or cooing in
the technical room
Easier commissioning & customisation › Control heat dissipation to achive
› 7 segment display maximum efficiency: set target
› 2 analogue input signals allowing external control of technical room temperature and unit
- ON-OFF (e.g. compressor) regulates actual heat dissipation
- Operation mode (cooling / heating)
- Limit of capacity
- Error signal
Total solution

Daikin Emura
wall mounted unit Nexura Fully flat cassette
Floor standing unit

Biddle air curtain Air handling unit for ventilation Low temperature hydrobox High temperature hydrobox
