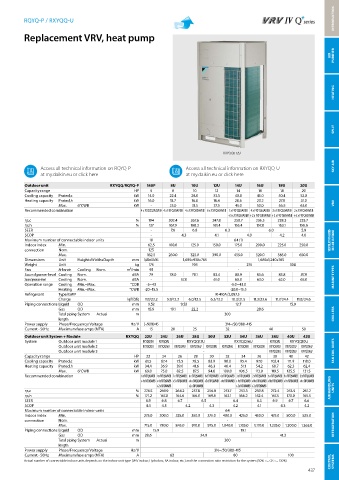

INTRODUCTION

RQYQ-P / RXYQQ-U

Replacement VRV, heat pump

AIR PURIFIER

HEATING

SPLIT

RXYQQ8-12U
SKY AIR
Access all technical information on RQYQ-P Access all technical information on RXYQQ-U
at my.daikin.eu or click here at my.daikin.eu or click here
Outdoor unit RXYQQ/RQYQ-P 140P 8U 10U 12U 14U 16U 18U 20U
Capacity range HP 5 8 10 12 14 16 18 20
Cooling capacity Prated,c kW 14.0 22.4 28.0 33.5 40.0 45.0 50.4 52.0
Heating capacity Prated,h kW 16.0 13.7 16.0 18.4 20.6 23.2 27.9 31.0
Max. 6°CWB kW - 25.0 31.5 37.5 45.0 50.0 56.5 63.0 VRV
Recommended combination 4 x FXSQ32A2VEB 4 x FXFQ50AVEB 4 x FXFQ63AVEB 6 x FXFQ50AVEB 1 x FXFQ50AVEB 4 x FXFQ63AVEB 3 x FXFQ50AVEB 2 x FXFQ50AVEB
+ 5 x FXFQ63AVEB + 2 x FXFQ80AVEB + 5 x FXFQ63AVEB + 6 x FXFQ63AVEB
ηs,c % 194 302.4 267.6 247.8 250.7 236.5 238.3 233.7
ηs,h % 137 167.9 168.2 161.4 155.4 157.8 163.1 156.6
SEER - 7.6 6.8 6.3 6.0 5.9
SCOP - 4.3 4.1 4.0 4.2 4.0
Maximum number of connectable indoor units 10 64 (1) VENTILATION & BID- DLE AIR CURTAINS
Indoor index Min. 62.5 100.0 125.0 150.0 175.0 200.0 225.0 250.0
connection Nom. 125 -
Max. 162.5 260.0 325.0 390.0 455.0 520.0 585.0 650.0
Dimensions Unit HeightxWidthxDepth mm 1,680x635x765 1,685x930x765 1,685x1,240x765
Weight Unit kg 175 198 275 308
Fan Air flow rate Cooling Nom. m³/min 95 -
Sound power level Cooling Nom. dBA 79 78.0 79.1 83.4 80.9 85.6 83.8 87.9 MARINE TYPES
Sound pressure level Cooling Nom. dBA - 57.0 61.0 60.0 63.0 62.0 65.0
Operation range Cooling Min.~Max. °CDB -5~43 -5.0~43.0
Heating Min.~Max. °CWB -20~15.5 -20.0~15.5
Refrigerant Type/GWP R-410A/2,087.5
Charge kg/TCO2Eq 11.1/23.2 5.9/12.3 6.0/12.5 6.3/13.2 10.3/21.5 11.3/23.6 11.7/24.4 11.8/24.6
Piping connections Liquid OD mm 9.52 9.52 12.7 15.9
Gas OD mm 15.9 19.1 22.2 28.6
Total piping System Actual m 300 CHILLERS
length
Power supply Phase/Frequency/Voltage Hz/V 3~/50/380-415 3N~/50/380-415
Current - 50Hz Maximum fuse amps (MFA) A 15 20 25 32 40 50
Outdoor unit System + Module RXYQQ 22U 24U 26U 28U 30U 32U 34U 36U 38U 40U 42U
System Outdoor unit module 1 RXYQQ10U RXYQQ8U RXYQQ12U RXYQQ16U RXYQQ8U RXYQQ10U
Outdoor unit module 2 RXYQQ12U RXYQQ16U RXYQQ14U RXYQQ16U RXYQQ18U RXYQQ16U RXYQQ18U RXYQQ20U RXYQQ10U RXYQQ12U RXYQQ16U
Outdoor unit module 3 - RXYQQ20U RXYQQ18U RXYQQ16U FAN COIL UNITS
Capacity range HP 22 24 26 28 30 32 34 36 38 40 42
Cooling capacity Prated,c kW 61.5 67.4 73.5 78.5 83.9 90.0 95.4 97.0 102.4 111.9 118.0
Heating capacity Prated,h kW 34.4 36.9 39.0 41.6 46.3 46.4 51.1 54.2 60.7 62.3 62.4
Max. 6°CWB kW 69.0 75.0 82.5 87.5 94.0 100.0 106.5 113.0 119.5 125.5 131.5
Recommended combination 6 x FXFQ50AVEB 4 x FXFQ50AVEB 7 x FXFQ50AVEB 6 x FXFQ50AVEB 9 x FXFQ50AVEB 8 x FXFQ63AVEB 3 x FXFQ50AVEB 2 x FXFQ50AVEB 6 x FXFQ50AVEB 9 x FXFQ50AVEB 12 x FXFQ63AVEB
+ 4 x FXFQ63AVEB + 4 x FXFQ63AVEB + 5 x FXFQ63AVEB + 4 x FXFQ63AVEB + 5 x FXFQ63AVEB + 4 x FXFQ80AVEB + 9 x FXFQ63AVEB + 10 x FXFQ63AVEB + 10 x FXFQ63AVEB + 9 x FXFQ63AVEB + 4 x FXFQ80AVEB
+ 2 x FXFQ80AVEB + 2 x FXFQ80AVEB + 2 x FXFQ80AVEB + 2 x FXFQ80AVEB AIR HANDLING UNITS
ηs,c % 274.5 269.9 264.2 257.8 256.8 251.7 253.3 250.8 272.4 263.5 261.2
ηs,h % 171.2 167.0 164.6 166.0 169.8 163.1 166.2 162.4 167.5 170.0 165.5
SEER 6.9 6.8 6.7 6.5 6.4 6.3 6.9 6.7 6.6
SCOP 4.4 4.3 4.2 4.3 4.2 4.1 4.3 4.2
Maximum number of connectable indoor units 64
Indoor index Min. 275.0 300.0 325.0 350.0 375.0 400.0 425.0 450.0 475.0 500.0 525.0
connection Nom. -
Max. 715.0 780.0 845.0 910.0 975.0 1,040.0 1,105.0 1,170.0 1,235.0 1,300.0 1,365.0 REFRIGERATION
Piping connections Liquid OD mm 15.9 19.1
Gas OD mm 28.6 34.9 41.3
Total piping System Actual m 300
length
Power supply Phase/Frequency/Voltage Hz/V 3N~/50/380-415
Current - 50Hz Maximum fuse amps (MFA) A 63 80 100
Actual number of connectable indoor units depends on the indoor unit type (VRV indoor, Hydrobox, RA indoor, etc.) and the connection ratio restriction for the system (50% <= CR <= 130%) CONTROL SYSTEMS
