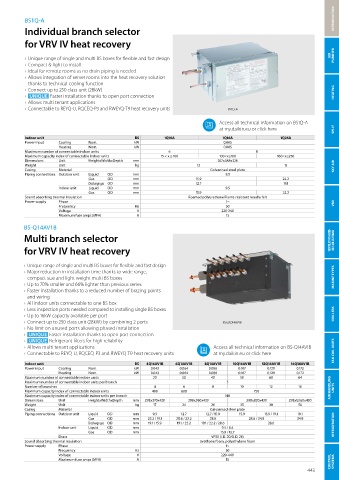

BS1Q-A
Individual branch selector
for VRV IV heat recovery

AIR PURIFIER
› Unique range of single and multi BS boxes for flexible and fast design
› Compact & light to install
› Ideal for remote rooms as no drain piping is needed
› Allows integration of server rooms into the heat recovery solution
thanks to technical cooling function
› Connect up to 250 class unit (28kW)
› UNIQUE Faster installation thanks to open port connection HEATING
› Allows multi tenant applications
› Connectable to REYQ-U, RQCEQ-P3 and RWEYQ-T9 heat recovery units BS1Q-A

Access all technical information on BS1Q-A
at my.daikin.eu or click here SPLIT
Indoor unit BS 1Q10A 1Q16A 1Q25A
Power input Cooling Nom. kW 0.005
Heating Nom. kW 0.005
Maximum number of connectable indoor units 6 8
Maximum capacity index of connectable indoor units 15 < x ≤ 100 100<x≤160 160<x≤250
Dimensions Unit HeightxWidthxDepth mm 207x388x326
Weight Unit kg 12 15 SKY AIR
Casing Material Galvanised steel plate
Piping connections Outdoor unit Liquid OD mm 9.5
Gas OD mm 15.9 22.2
Discharge gas OD mm 12.7 19.1
Indoor unit Liquid OD mm 9.5
Gas OD mm 15.9 22.2
Sound absorbing thermal insulation Foamed polyurethane Flame-resistant needle felt
Power supply Phase 1~ VRV
Frequency Hz 50
Voltage V 220-240
Maximum fuse amps (MFA) A 15
BS-Q14AV1B
Multi branch selector VENTILATION & BID- DLE AIR CURTAINS

for VRV IV heat recovery

› Unique range of single and multi BS boxes for flexible and fast design
› Major reduction in installation time thanks to wide range,
compact size and light weight multi BS boxes MARINE TYPES
› Up to 70% smaller and 66% lighter than previous series
› Faster installation thanks to a reduced number of brazing points
and wiring
› All indoor units connectable to one BS box
› Less inspection ports needed compared to installing single BS boxes
› Up to 16kW capacity available per port CHILLERS
› Connect up to 250 class unit (28kW) by combining 2 ports BS6,8Q14AV1B
› No limit on unused ports allowing phased installation
› UNIQUE Faster installation thanks to open port connection
› UNIQUE Refrigerant filters for high reliability
› Allows multi tenant applications Access all technical information on BS-Q14AV1B
› Connectable to REYQ-U, RQCEQ-P3 and RWEYQ-T9 heat recovery units at my.daikin.eu or click here FAN COIL UNITS
Indoor unit BS 4Q14AV1B 6Q14AV1B 8Q14AV1B 10Q14AV1B 12Q14AV1B 16Q14AV1B
Power input Cooling Nom. kW 0.043 0.064 0.086 0.107 0.129 0.172
Heating Nom. kW 0.043 0.064 0.086 0.107 0.129 0.172
Maximum number of connectable indoor units 20 30 40 50 60 64
Maximum number of connectable indoor units per branch 5
Number of branches 4 6 8 10 12 16 AIR HANDLING UNITS
Maximum capacity index of connectable indoor units 400 600 750
Maximum capacity index of connectable indoor units per branch 140
Dimensions Unit HeightxWidthxDepth mm 298x370x430 298x580x430 298x820x430 298x1,060x430
Weight Unit kg 17 24 26 35 38 50
Casing Material Galvanised steel plate
Piping connections Outdoor unit Liquid OD mm 9.5 12.7 12.7 / 15.9 15.9 15.9 / 19.1 19.1
Gas OD mm 22.2 / 19.1 28.6 / 22.2 28.6 28.6 / 34.9 34.9
Discharge gas OD mm 19.1 / 15.9 19.1 / 22.2 19.1 / 22.2 / 28.6 28.6
Indoor unit Liquid OD mm 9.5 / 6.4 REFRIGERATION
Gas OD mm 15.9 / 12.7
Drain VP20 (I.D. 20/O.D. 26)
Sound absorbing thermal insulation Urethane foam, polyethylene foam
Power supply Phase 1~
Frequency Hz 50
Voltage V 220-440
Maximum fuse amps (MFA) A 15 CONTROL SYSTEMS
