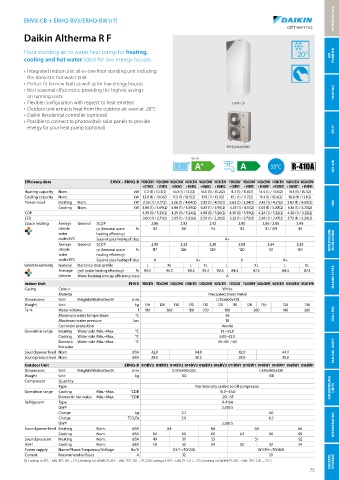

EHVX-CB + ERHQ-BV3/ERHQ-BW1(7)

Daikin Altherma R F

Floor standing air to water heat pump for heating,
cooling and hot water; ideal for low energy houses AIR PURIFIER

› Integrated indoor unit: all-in-one floor standing unit including
the domestic hot water tank
› Perfect fit for new built as well as for low energy houses
› Best seasonal efficiencies, providing the highest savings HEATING
on running costs
› Flexible configuration with respect to heat emitters EHVX-CB
› Outdoor unit extracts heat from the outdoor air, even at -20°C
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional) SPLIT

A +++
ERHQ011-016BW1
A ++ A +
up to
A + A 55°C SKY AIR

A B
Efficiency data EHVX + ERHQ-B 11S18CB3V 11S26CB9W 16S26CB9W 16S18CB3V 16S26CB9W 16S18CB3V 11S18CB3V 11S26CB9W 16S26CB9W 16S18CB3V 16S18CB3V 16S26CB9W
+ 011BV3 + 011BV3 + 014BV3 + 014BV3 + 016BV3 + 016BV3 + 011BW1 + 011BW1 + 014BW17 + 014BW17 + 016BW1 + 016BW1
C
Heating capacity Nom. kW 11.2 (1) / 10.3(2) 14.0 (1) / 13.1(2) B 16.0 (1) / 15.2(2) 11.3 (1) / 11.0(2) 14.5 (1) / 13.6(2) 16.1 (1) / 15.1(2)
Cooling capacity Nom. kW 13.9 (1) / 10.0(2) 17.3 (1) / 12.5(2) 17.8 (1) / 13.1(2) 15.1 (1) / 11.7(2) 16.1 (1) / 12.6(2) 16.8 (1) / 13.1(2)
D
C
Power input Heating Nom. kW 2.55 (1) / 3.17(2) 3.26 (1) / 4.04(2) 3.92 (1) / 4.75(2) 2.63 (1) / 3.24(2) 3.42 (1) / 4.21(2) 3.82 (1) / 4.69(2) VRV
Cooling Nom. kW 3.86 (1) / 3.69(2) 5.86 (1) / 5.69(2) 6.87 (1) / 5.95(2) 4.53 (1) / 4.31(2) 5.43 (1) / 5.08(2) 6.16 (1) / 5.73(2)
E
D
COP 4.39 (1) / 3.25(2) 4.29 (1) / 3.24(2) 4.08 (1) / 3.20(2) 4.30 (1) / 3.39(2) 4.24 (1) / 3.22(2) 4.20 (1) / 3.22(2)
EER 3.60 (1) / 2.71(2) 2.95 (1) / 2.32(2) 2.59 (1) / 2.20(2) 3.32 (1) / 2.72(2) 2.96 (1) / 2.47(2) 2.72 (1) / 2.29(2)
110 E
Space heating Average General SCOP 2.86 2.82 2.92 2.90 2.86 / 2.80 2.96
113 F
climate ŋs (Seasonal space % 112 114 111 / 109 115
water heating efficiency)
outlet 55°C Seasonal space heating eff. class F A+ G VENTILATION & BID- DLE AIR CURTAINS
Average General SCOP 2.99 3.23 3.29 3.08 3.34 3.33
climate ŋs (Seasonal space % 117 126 G 129 120 131 130
water heating efficiency)
outlet 35°C Seasonal space heating eff. class A A+ A A+
Domestic hot water heating General Declared load profile L XL L XL L XL L XL
Average ŋwh (water heating efficiency) % 90.5 95.3 90.5 95.3 90.5 84.3 87.3 84.3 87.3
climate Water heating energy efficiency class A MARINE TYPES
Indoor Unit EHVX 11S18CB3V 11S26CB9W 16S26CB9W 16S18CB3V 16S26CB9W 16S18CB3V 11S18CB3V 11S26CB9W 16S26CB9W 16S18CB3V 16S18CB3V 16S26CB9W
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,732x600x728
Weight Unit kg 119 128 130 120 130 120 119 128 130 120 130
Tank Water volume l 180 260 180 260 180 260 180 260
Maximum water temperature °C 65 CHILLERS
Maximum water pressure bar 10
Corrosion protection Anode
Operation range Heating Water side Min.~Max. °C 15 ~55.0
Cooling Water side Min.~Max. °C 5.00~22.0
Domestic Water side Min.~Max. °C 25~60 / 60
hot water
Sound power level Nom. dBA 42.0 44.0 42.0 44.0 FAN COIL UNITS
Sound pressure level Nom. dBA 28.0 30.0 28.0 30.0
Outdoor Unit ERHQ-B 011BV3 011BV3 014BV3 014BV3 016BV3 016BV3 011BW1 011BW1 014BW1 014BW17 016BW1 016BW1
Dimensions Unit HeightxWidthxDepth mm 1,170x900x320 1,345x900x320
Weight Unit kg 102 108
Compressor Quantity 1
Type Hermetically sealed scroll compressor AIR HANDLING UNITS
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 2.7 3.0
Charge TCO2Eq 5.6 6.3
GWP 2,087.5 REFRIGERATION
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 49 51 53 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 32 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ) CONTROL SYSTEMS
