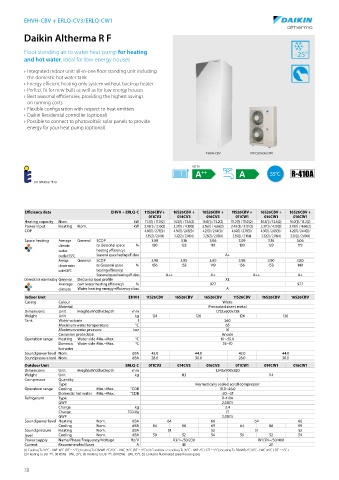

Page 80 - General Catalogue

EHVH-CBV + ERLQ-CV3/ERLQ-CW1

Daikin Altherma R F

Floor standing air to water heat pump for heating
and hot water, ideal for low energy houses

› Integrated indoor unit: all-in-one floor standing unit including
the domestic hot water tank
› Energy efficient heating only system without back-up heater
› Perfect fit for new built as well as for low energy houses
› Best seasonal efficiencies, providing the highest savings
on running costs
› Flexible configuration with respect to heat emitters
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional)

EHVH-CBV ERLQ011-016CW1
A +++ A +
up to
A ++ A 55°C

A B
011-1W0068 78 +
A C

16S26CBV + B D
Efficiency data EHVH + ERLQ-C 11S26CBV + 16S26CBV + 11S26CBV + 16S26CBV + 16S26CBV +
011CV3 014CV3 016CV3 011CW1 014CW1 016CW1
E
Heating capacity Nom. kW 11.2(1) / 11.0(2) 14.5(1) / 13.6(2) C 16.0(1) / 15.2(2) 11.2(1) / 11.0(2) 14.5(1) / 13.6(2) 16.0(1) / 15.2(2)
Power input Heating Nom. kW 2.43(1) / 3.10(2) 3.37(1) / 4.10(2) 3.76(1) / 4.66(2) 2.43 (1) / 3.10 (2) 3.37(1) / 4.10(2) 3.76(1) / 4.66(2)
COP 4.60(1) / 2.75(3) / 4.30(1) / 2.65(3) / 4.25(1) / 2.64(3) / 4.60(1) / 2.75(3) / 4.30(1) / 2.65(3) / 4.25(1) / 2.64(3) /
F
3.55(2) / 2.10(4) 3.32(2) / 2.08(4) D 3.26(2) / 2.09(4) 3.55(2) / 2.10(4) 3.32(2) / 2.08(4) 3.26(2) / 2.09(4)
Space heating Average General SCOP 3.09 3.16 3.06 3.09 3.16 3.06
climate ŋs (Seasonal space % 120 123 E 119 G 123 119
120
water heating efficiency)
outlet 55°C Seasonal space heating eff. class 3.90 F A+
Average General SCOP 3.98 3.80 3.98 3.90 3.80
climate water ŋs (Seasonal space % 156 153 149 156 153 149
outlet 35°C heating efficiency) G
Seasonal space heating eff. class A++ A+ A++ A+
Domestic hot water heating General Declared load profile XL
Average ŋwh (water heating efficiency) % 97.7 97.7
climate Water heating energy efficiency class A
Indoor Unit EHVH 11S26CBV 16S26CBV 16S26CBV 11S26CBV 16S26CBV 16S26CBV
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,732x600x728
Weight Unit kg 124 126 124 126
Tank Water volume l 260
Maximum water temperature °C 65
Maximum water pressure bar 10
Corrosion protection Anode
Operation range Heating Water side Min.~Max. °C 10 ~55.0
Domestic Water side Min.~Max. °C 25~70
hot water
Sound power level Nom. dBA 42.0 44.0 42.0 44.0
Sound pressure level Nom. dBA 28.0 30.0 28.0 30.0
Outdoor Unit ERLQ-C 011CV3 014CV3 016CV3 011CW1 014CW1 016CW1
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320
Weight Unit kg 113 114
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 3.4
Charge TCO2Eq 7.1
GWP 2,087.5
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 51 52 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 40 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) Heating Ta DB -7°C (RH85%) - LWC 35°C (4) Heating Ta DB -7°C (RH85%) - LWC 45°C (5) Contains fluorinated greenhouse gases
