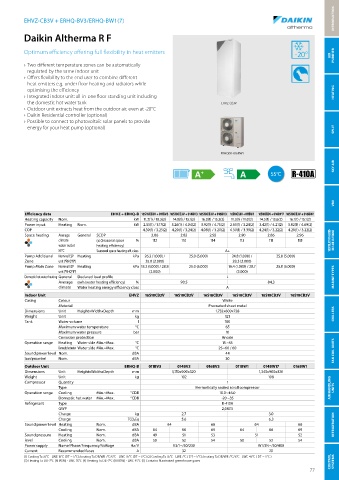

EHVZ-CB3V + ERHQ-BV3/ERHQ-BW1(7)

Daikin Altherma R F

Optimum efficiency offering full flexibility in heat emitters
AIR PURIFIER
› Two different temperature zones can be automatically
regulated by the same indoor unit
› Offers flexibility to the end user to combine different
heat emitters e.g. under floor heating and radiators while
optimising the efficiency HEATING
› Integrated indoor unit: all-in-one floor standing unit including
the domestic hot water tank EHVZ-CB3V
› Outdoor unit extracts heat from the outdoor air, even at -20°C
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional) SPLIT

A +++ ERHQ011-016BW1
A ++ A + SKY AIR

A + A 55°C

A B
B C

C D VRV
Efficiency data EHVZ + ERHQ-B 16S18CB3V + 011BV3 16S18CB3V + 014BV3 16S18CB3V + 016BV3 16S18CB3V + 011BW1 16S18CB3V + 014BW17 16S18CB3V + 016BW1
14.0(1) / 13.1(2)
Heating capacity Nom. kW 11.2(1) / 10.3(2) 3.26(1) / 4.04(2) D 16.0(1) / 15.2(2) 11.3(1) / 11.0(2) 14.5(1) / 13.6(2) 16.1(1) / 15.1(2)
E
Power input Heating Nom. kW 2.55(1) / 3.17(2) 3.92(1) / 4.75(2) 2.63(1) / 3.24(2) 3.42(1) / 4.21(2) 3.82(1) / 4.69(2)
COP 4.39(1) / 3.25(2) 4.29(1) / 3.24(2) 4.08(1) / 3.20(2) 4.30(1) / 3.39(2) 4.24(1) / 3.22(2) 4.20(1) / 3.22(2)
2.90
Space heating Average General SCOP 2.86 2.82 E 2.92 F 2.86 2.96
climate ŋs (Seasonal space % 112 110 114 113 111 115 VENTILATION & BID- DLE AIR CURTAINS
water outlet heating efficiency) F G
55°C Seasonal space heating eff. class A+
G
Pump Additional Nominal ESP Heating kPa 26.2 (1.000) / 25.0 (5.000) 24.8 (1.000) / 25.0 (5.000)
Zone unit (*RHQ*B*) 35.0 (2.000) 28.3 (2.000)
Pump Main Zone Nominal ESP Heating kPa 18.2 (1.000) / 28.8 25.0 (5.000) 16.4 (1.000) / 20.7 25.0 (5.000)
unit (*RHQ*B*) (2.000) (2.000)
Domestic hot water heating General Declared load profile L MARINE TYPES
Average ŋwh (water heating efficiency) % 90.5 84.3
climate Water heating energy efficiency class A
Indoor Unit EHVZ 16S18CB3V 16S18CB3V 16S18CB3V 16S18CB3V 16S18CB3V 16S18CB3V
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,732x600x728
Weight Unit kg 121 CHILLERS
Tank Water volume l 180
Maximum water temperature °C 65
Maximum water pressure bar 10
Corrosion protection Anode
Operation range Heating Water side Min.~Max. °C 15 ~55
Domestic hot water Water side Min.~Max. °C 25~60 / 60
Sound power level Nom. dBA 44 FAN COIL UNITS
Sound pressure level Nom. dBA 30
Outdoor Unit ERHQ-B 011BV3 014BV3 016BV3 011BW1 014BW17 016BW1
Dimensions Unit HeightxWidthxDepth mm 1,170x900x320 1,345x900x320
Weight Unit kg 102 108
Compressor Quantity 1
Type Hermetically sealed scroll compressor AIR HANDLING UNITS
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 2.7 3.0
Charge TCO2Eq 5.6 6.3
Sound power level Heating Nom. dBA 64 66 64 66 REFRIGERATION
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 49 51 53 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 32 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) Heating Ta DB -7°C (RH85%) - LWC 35°C (4) Heating Ta DB -7°C (RH85%) - LWC 45°C (5) Contains fluorinated greenhouse gases CONTROL SYSTEMS
