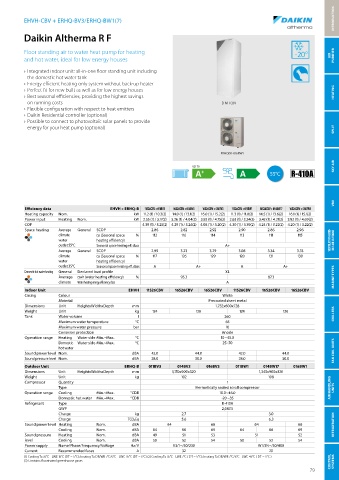

INTRODUCTION

EHVH-CBV + ERHQ-BV3/ERHQ-BW1(7)

Daikin Altherma R F

Floor standing air to water heat pump for heating
and hot water, ideal for low energy houses AIR PURIFIER

› Integrated indoor unit: all-in-one floor standing unit including
the domestic hot water tank
› Energy efficient heating only system without back-up heater
› Perfect fit for new built as well as for low energy houses HEATING
› Best seasonal efficiencies, providing the highest savings
on running costs EHVH-CBV
› Flexible configuration with respect to heat emitters
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional) SPLIT

A +++ ERHQ011-016BW1
A ++ A +
up to SKY AIR
A + A 55°C
A B

B C

D
Efficiency data EHVH + ERHQ-B 11S26CBV + 011BV3 16S26CBV + 014BV3 C 16S26CBV + 016BV3 11S26CBV + 011BW1 16S26CBV + 014BW17 16S26CBV + 016BW1 VRV
Heating capacity Nom. kW 11.2 (1) / 10.3(2) 14.0 (1) / 13.1(2) 16.0 (1) / 15.2(2) 11.3 (1) / 11.0(2) 14.5 (1) / 13.6(2) 16.1 (1) / 15.1(2)
D
E
Power input Heating Nom. kW 2.55 (1) / 3.17(2) 3.26 (1) / 4.04(2) 3.92 (1) / 4.75(2) 2.63 (1) / 3.24(2) 3.42 (1) / 4.21(2) 3.82 (1) / 4.69(2)
COP 4.39 (1) / 3.25(2) 4.29 (1) / 3.24(2) 4.08 (1) / 3.20(2) 4.30 (1) / 3.39(2) 4.24 (1) / 3.22(2) 4.20 (1) / 3.22(2)
Space heating Average General SCOP 2.86 2.82 2.92 2.90 2.86 2.96
climate ŋs (Seasonal space % 112 110 E 114 113 F 111 115
water heating efficiency) VENTILATION & BID- DLE AIR CURTAINS
outlet 55°C Seasonal space heating eff. class F A+ G
Average General SCOP 2.99 3.23 3.29 3.08 3.34 3.33
climate ŋs (Seasonal space % 117 126 G 129 120 131 130
water heating efficiency)
outlet 35°C Seasonal space heating eff. class A A+ A A+
Domestic hot water heating General Declared load profile XL
Average ŋwh (water heating efficiency) % 95.3 87.3 MARINE TYPES
climate Water heating energy efficiency class A
Indoor Unit EHVH 11S26CBV 16S26CBV 16S26CBV 11S26CBV 16S26CBV 16S26CBV
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,732x600x728
Weight Unit kg 124 126 124 126
Tank Water volume l 260 CHILLERS
Maximum water temperature °C 65
Maximum water pressure bar 10
Corrosion protection Anode
Operation range Heating Water side Min.~Max. °C 10 ~55.0
Domestic Water side Min.~Max. °C 25~70
hot water
Sound power level Nom. dBA 42.0 44.0 42.0 44.0 FAN COIL UNITS
Sound pressure level Nom. dBA 28.0 30.0 28.0 30.0
Outdoor Unit ERHQ-B 011BV3 014BV3 016BV3 011BW1 014BW17 016BW1
Dimensions Unit HeightxWidthxDepth mm 1,170x900x320 1,345x900x320
Weight Unit kg 102 108
Compressor Quantity 1
Type Hermetically sealed scroll compressor AIR HANDLING UNITS
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 2.7 3.0
Charge TCO2Eq 5.6 6.3
Sound power level Heating Nom. dBA 64 66 64 66 REFRIGERATION
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 49 51 53 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 32 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) Contains fluorinated greenhouse gases CONTROL SYSTEMS
