Daikin Altherma R F low temperature split

floor standing unit HEATING

with integrated SPLIT

domestic hot water tank

SKY AIR

VRV

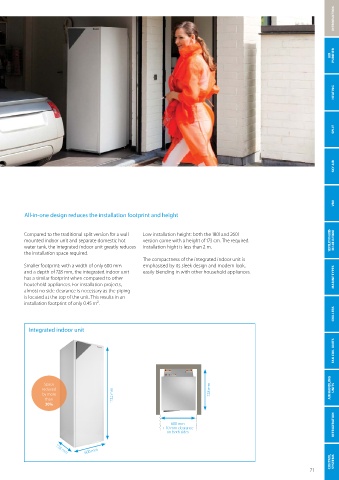

All-in-one design reduces the installation footprint and height

Compared to the traditional split version for a wall Low installation height: both the 180l and 260l
mounted indoor unit and separate domestic hot version come with a height of 173 cm. The required VENTILATION & BID- DLE AIR CURTAINS
water tank, the integrated indoor unit greatly reduces installation hight is less than 2 m.
the installation space required.
The compactness of the integrated indoor unit is
Smaller footprint: with a width of only 600 mm emphasised by its sleek design and modern look,
and a depth of 728 mm, the integrated indoor unit easily blending in with other household appliances.
has a similar footprint when compared to other MARINE TYPES
household appliances. For installation projects,
almost no side clearance is necessary as the piping
is located at the top of the unit. This results in an
installation footprint of only 0.45 m2.
CHILLERS

Integrated indoor unit
FAN COIL UNITS

Space
reduced 728 mm AIR HANDLING UNITS
by more 1732 mm
than
30%
REFRIGERATION
600 mm
+ 10 mm clearance
on both sides

600 mm
728 mm
