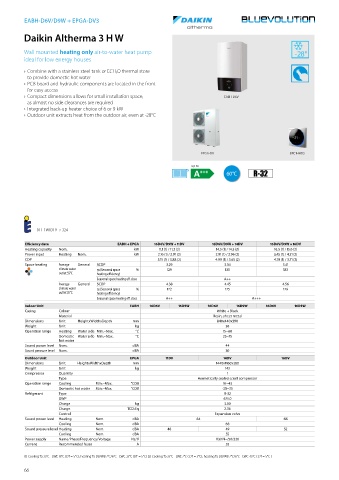

Page 68 - General Catalogue

EABH-D6V/D9W + EPGA-DV3

Daikin Altherma 3 H W

Wall mounted heating only air-to-water heat pump
ideal for low energy houses

› Combine with a stainless steel tank or ECH 2O thermal store
to provide domestic hot water
› PCB board and hydraulic components are located in the front
for easy access
› Compact dimensions allows for small installation space, EABH-D6V
as almost no side clearances are required
› Integrated back-up heater choice of 6 or 9 kW
› Outdoor unit extracts heat from the outdoor air, even at -28°C

EPGA-DV BRC1HHDS

up to
A +++ 60°C
A ++

A +

A
B

011-1W0319 -> 324
C
Efficiency data EABH + EPGA 16D6V/D9W + 11DV D 16D6V/D9W + 14DV 16D6V/D9W + 16DV
Heating capacity Nom. kW 11.1 (1) / 11.3 (2) 14.5 (1) / 14.5 (2) 16.5 (1) / 15.6 (2)
Power input Heating Nom. kW 2.16 (1) / 2.91 (2) 2.91 (1) / 3.96 (2) 3.45 (1) / 4.21 (2)
COP 5.15 (1) / 3.88 (2) E 4.99 (1) / 3.65 (2) 4.78 (1) / 3.71 (2)
Space heating Average General SCOP 3.29 3.34 3.41
climate water ŋs (Seasonal space % 129 F 130 133
outlet 55°C heating efficiency)
Seasonal space heating eff. class A++
Average General SCOP 4.38 G 4.45 4.56
climate water ŋs (Seasonal space % 172 175 179
outlet 35°C heating efficiency)
Seasonal space heating eff. class A++ A+++
Indoor Unit EABH 16D6V 16D9W 16D6V 16D9W 16D6V 16D9W
Casing Colour White + Black
Material Resin, sheet metal
Dimensions Unit HeightxWidthxDepth mm 840x440x390
Weight Unit kg 38
Operation range Heating Water side Min.~Max. °C 15~60
Domestic Water side Min.~Max. °C 25~75
hot water
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30
Outdoor Unit EPGA 11DV 14DV 16DV
Dimensions Unit HeightxWidthxDepth mm 1440x1160x380
Weight Unit kg 143
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -28~35
Refrigerant Type R-32
GWP 675.0
Charge kg 3.50
Charge TCO2Eq 2.36
Control Expansion valve
Sound power level Heating Nom. dBA 64 66
Cooling Nom. dBA 68
Sound pressure level Heating Nom. dBA 48 49 52
Cooling Nom. dBA 55
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 32

(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )

66 66
