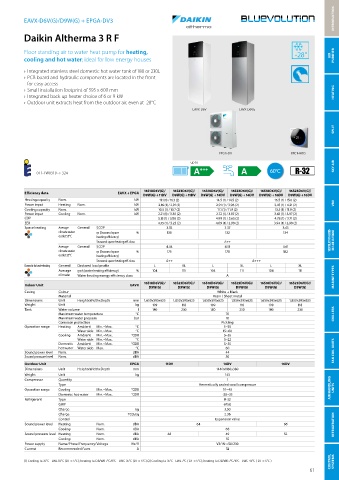

Page 63 - General Catalogue

INTRODUCTION

EAVX-D6V(G)/D9W(G) + EPGA-DV3

Daikin Altherma 3 R F

Floor standing air to water heat pump for heating,
cooling and hot water; ideal for low energy houses AIR PURIFIER

› Integrated stainless steel domestic hot water tank of 180 or 230L
› PCB board and hydraulic components are located in the front
for easy access
› Small installation footprint of 595 x 600 mm HEATING
› Integrated back-up heater choice of 6 or 9 kW
› Outdoor unit extracts heat from the outdoor air, even at -28°C
EAVX-D6V EAVX-D6VG

SPLIT

EPGA-DV BRC1HHDS
A +
up to SKY AIR
A +++ A 60°C
011-1W0319 -> 324
A ++ B
16S23D6V(G)/
C
Efficiency data EAVX + EPGA 16S18D6V(G)/ D9W(G) + 11DV + 16S18D6V(G)/ 16S23D6V(G)/ 16S18D6V(G)/ 16S23D6V(G)/
D9W(G) + 11DV A D9W(G) + 14DV D9W(G) + 14DV D9W(G) + 16DV D9W(G) + 16DV
Heating capacity Nom. kW 11.1 (1) / 11.3 (2) 14.5 (1) / 14.5 (2) 16.5 (1) / 15.6 (2)
11.1 (1) / 11.9 (2) D
Power input Heating Nom. kW 2.16 (1) / 2.91 (2) A 2.91 (1) / 3.96 (2) 3.45 (1) / 4.21 (2) VRV
Cooling capacity Nom. kW 10.5 (1) / 10.7 (2) 13.5 (1) / 11.9 (2)
Power input Cooling Nom. kW 2.21 (1) / 3.30 (2) 2.72 (1) / 3.97 (2) 3.42 (1) / 3.97 (2)
COP 5.15 (1) / 3.88 (2) B 4.99 (1) / 3.65 (2) E 4.78 (1) / 3.71 (2)
EER 4.75 (1) / 3.23 (2) 4.09 (1) / 2.99 (2) 3.94 (1) / 2.99 (2)
Space heating Average General SCOP 3.32 3.37 3.43
climate water ŋs (Seasonal space % 130 C 132 F 134
outlet 55°C heating efficiency)
4.51 G
Seasonal space heating eff. class D A++ VENTILATION & BID- DLE AIR CURTAINS
Average General SCOP 4.44 4.61
climate water ŋs (Seasonal space % 175 178 182
outlet 35°C heating efficiency) E
Seasonal space heating eff. class A++ A+++
XL
Domestic hot water heating General Declared load profile L 111 F L XL L XL
Average ŋwh (water heating efficiency) % 104 104 111 104 111
climate Water heating energy efficiency class A MARINE TYPES
16S18D6V(G)/ 16S23D6V(G)/ G 16S18D6V(G)/ 16S23D6V(G)/ 16S18D6V(G)/ 16S23D6V(G)/
Indoor Unit EAVX
D9W(G) D9W(G) D9W(G) D9W(G) D9W(G) D9W(G)
Casing Colour White + Black
Material Resin / Sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625
Weight Unit kg 109 118 109 118 109 118
Tank Water volume l 180 230 180 230 180 230
Maximum water temperature °C 70 CHILLERS
Maximum water pressure bar 10
Corrosion protection Pickling
Operation range Heating Ambient Min.~Max. °C 5~30
Water side Min.~Max. °C 15~60
Cooling Ambient Min.~Max. °CDB 5~35
Water side Min.~Max. °C 5~22
Domestic Ambient Min.~Max. °CDB 5~35
hot water Water side Max. °C 60
Sound power level Nom. dBA 44 FAN COIL UNITS
Sound pressure level Nom. dBA 30
Outdoor Unit EPGA 11DV 14DV 16DV
Dimensions Unit HeightxWidthxDepth mm 1440x1160x380
Weight Unit kg 143
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10~43 AIR HANDLING UNITS
Domestic hot water Min.~Max. °CDB -28~35
Refrigerant Type R-32
GWP 675.0
Charge kg 3.50
Charge TCO2Eq 2.36
Control Expansion valve
Sound power level Heating Nom. dBA 64 66 REFRIGERATION
Cooling Nom. dBA 68
Sound pressure level Heating Nom. dBA 48 49 52
Cooling Nom. dBA 55
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 32
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ) CONTROL SYSTEMS
