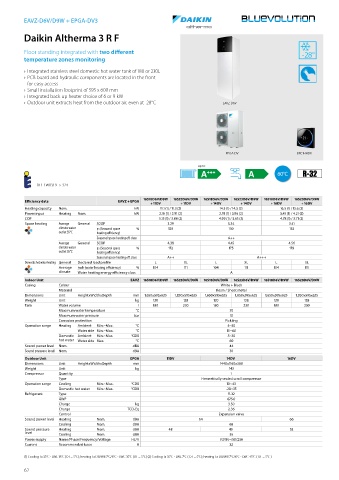

Page 64 - General Catalogue

EAVZ-D6V/D9W + EPGA-DV3

Daikin Altherma 3 R F

Floor standing integrated with two different
temperature zones monitoring

› Integrated stainless steel domestic hot water tank of 180 or 230L
› PCB board and hydraulic components are located in the front
for easy access
› Small installation footprint of 595 x 600 mm
› Integrated back-up heater choice of 6 or 9 kW
› Outdoor unit extracts heat from the outdoor air, even at -28°C EAVZ-D6V

EPGA-DV BRC1HHDK
A +
up to
A +++ A 60°C

011-1W0319 -> 324 A ++ B
16S23D6V/D9W A + C
16S18D6V/D9W 16S18D6V/D9W 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W
Efficiency data EAVZ + EPGA
+ 11DV + 11DV + 14DV + 14DV + 16DV + 16DV
Heating capacity Nom. kW 11.1 (1) / 11.3 (2) A 14.5 (1) / 14.5 (2) D 16.5 (1) / 15.6 (2)
Power input Heating Nom. kW 2.16 (1) / 2.91 (2) 2.91 (1) / 3.96 (2) 3.45 (1) / 4.21 (2)
COP 5.15 (1) / 3.88 (2) 4.99 (1) / 3.65 (2) 4.78 (1) / 3.71 (2)
Space heating Average General SCOP 3.29 B 3.34 E 3.41
climate water ŋs (Seasonal space % 129 130 133
outlet 55°C heating efficiency) C F
Seasonal space heating eff. class A++
Average General SCOP 4.38 4.45 4.56
climate water ŋs (Seasonal space % 172 D 175 G 179
outlet 35°C heating efficiency)
Seasonal space heating eff. class A++ E A+++
Domestic hot water heating General Declared load profile L XL L XL L XL
Average ŋwh (water heating efficiency) % 104 111 104 111 104 111
climate Water heating energy efficiency class F A
16S18D6V/D9W
Indoor Unit EAVZ 16S18D6V/D9W 16S23D6V/D9W G 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W
Casing Colour White + Black
Material Resin / Sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625
Weight Unit kg 120 128 120 128 120 128
Tank Water volume l 180 230 180 230 180 230
Maximum water temperature °C 70
Maximum water pressure bar 10
Corrosion protection Pickling
Operation range Heating Ambient Min.~Max. °C 5~30
Water side Min.~Max. °C 15~60
Domestic Ambient Min.~Max. °CDB 5~35
hot water Water side Max. °C 60
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30
Outdoor Unit EPGA 11DV 14DV 16DV
Dimensions Unit HeightxWidthxDepth mm 1440x1160x380
Weight Unit kg 143
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -28~35
Refrigerant Type R-32
GWP 675.0
Charge kg 3.50
Charge TCO2Eq 2.36
Control Expansion valve
Sound power level Heating Nom. dBA 64 66
Cooling Nom. dBA 68
Sound pressure Heating Nom. dBA 48 49 52
level Cooling Nom. dBA 55
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 32

(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
