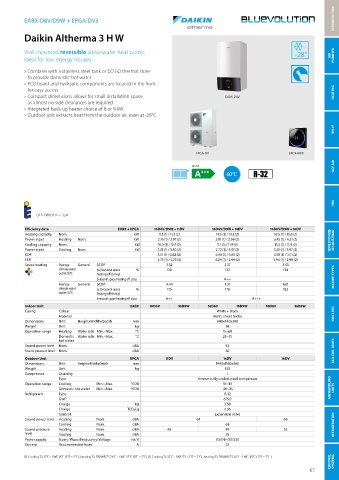

EABX-D6V/D9W + EPGA-DV3

Daikin Altherma 3 H W

Wall mounted reversible air-to-water heat pump
ideal for low energy houses AIR PURIFIER

› Combine with a stainless steel tank or ECH 2O thermal store
to provide domestic hot water
› PCB board and hydraulic components are located in the front
for easy access HEATING
› Compact dimensions allows for small installation space, EABX-D6V
as almost no side clearances are required
› Integrated back-up heater choice of 6 or 9 kW
› Outdoor unit extracts heat from the outdoor air, even at -28°C
SPLIT

EPGA-DV BRC1HHDK

up to SKY AIR
A +++ 60°C
A ++

A +

A VRV
011-1W0319 -> 324
B
Efficiency data EABX + EPGA 16D6V/D9W + 11DV 16D6V/D9W + 14DV 16D6V/D9W + 16DV
Heating capacity Nom. kW 11.1 (1) / 11.3 (2) C 14.5 (1) / 14.5 (2) 16.5 (1) / 15.6 (2)
Power input Heating Nom. kW 2.16 (1) / 2.91 (2) 2.91 (1) / 3.96 (2) 3.45 (1) / 4.21 (2) VENTILATION & BID- DLE AIR CURTAINS
Cooling capacity Nom. kW 10.5 (1) / 10.7 (2) D 11.1 (1) / 11.9 (2) 13.5 (1) / 11.9 (2)
Power input Cooling Nom. kW 2.21 (1) / 3.30 (2) 2.72 (1) / 3.97 (2) 3.42 (1) / 3.97 (2)
COP 5.15 (1) / 3.88 (2) 4.99 (1) / 3.65 (2) 4.78 (1) / 3.71 (2)
EER 4.75 (1) / 3.23 (2) E 4.09 (1) / 2.99 (2) 3.94 (1) / 2.99 (2)
Space heating Average General SCOP 3.32 3.37 3.43
climate water ŋs (Seasonal space % 130 F 132 134
outlet 55°C heating efficiency)
Seasonal space heating eff. class A++ MARINE TYPES
Average General SCOP 4.44 G 4.51 4.61
climate water ŋs (Seasonal space % 175 178 182
outlet 35°C heating efficiency)
Seasonal space heating eff. class A++ A+++
Indoor Unit EABX 16D6V 16D9W 16D6V 16D9W 16D6V 16D9W
Casing Colour White + Black
Material Resin, sheet metal CHILLERS
Dimensions Unit HeightxWidthxDepth mm 840x440x390
Weight Unit kg 38
Operation range Heating Water side Min.~Max. °C 15~60
Domestic Water side Min.~Max. °C 25~75
hot water
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30 FAN COIL UNITS
Outdoor Unit EPGA 11DV 14DV 16DV
Dimensions Unit HeightxWidthxDepth mm 1440x1160x380
Weight Unit kg 143
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -28~35 AIR HANDLING UNITS
Refrigerant Type R-32
GWP 675.0
Charge kg 3.50
Charge TCO2Eq 2.36
Control Expansion valve
Sound power level Heating Nom. dBA 64 66
Cooling Nom. dBA 68 REFRIGERATION
Sound pressure Heating Nom. dBA 48 49 52
level Cooling Nom. dBA 55
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 32

(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
