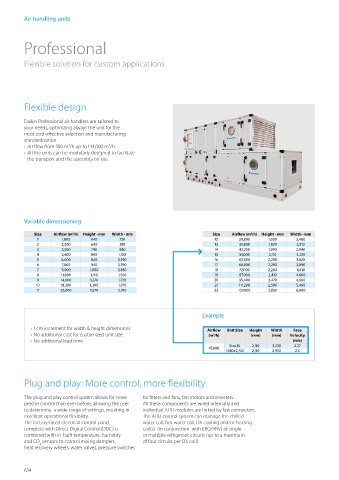

Page 636 - General Catalogue

Air handling units

Professional

Flexible solution for custom applications

Flexible design

Daikin Professional air handlers are tailored to
your needs, optimizing always the unit for the
most cost-effective selection and manufacturing
standardization.
› Air flow from 500 m³/h up to 144,000 m³/h.
› All the units can be modularly designed to facilitate
the transport and the assembly on site.

Variable dimensioning

Size Airflow (m /h) Height - mm Width - mm Size Airflow (m /h) Height - mm Width - mm
3
3
1 1,800 640 720 12 29,800 1,690 2,480
2 2,200 640 810 13 33,800 1,870 2,510
3 3,500 740 980 14 43,200 1,990 2,940
4 5,400 840 1,190 15 51,000 2,110 3,230
5 6,600 840 1,390 16 63,000 2,290 3,620
6 7,600 940 1,390 17 68,000 2,290 3,890
7 9,000 1,090 1,380 18 77,000 2,290 4,410
8 11,000 1,150 1,550 19 87,000 2,410 4,660
9 14,000 1,270 1,720 20 95,400 2,470 4,960
10 18,300 1,390 1,970 21 111,200 2,590 5,460
11 23,800 1,570 2,190 22 127,000 2,650 6,060

Example

› 1 cm increment for width & height dimensions Airflow Unit Size Height Width Face
› No additional cost for customized unit size (m /h) (mm) (mm) Velocity
3
› No additional lead time (m/s)
Size 15 2,110 3,230 2.27
47,000
1,920x2,720 2,110 2,950 2.5

Plug and play: More control, more flexibility

The plug and play control system allows for more for filters and fans, fan motors and inverters.
precise control than ever before, allowing the user All these components are wired internally and
to determine a wide range of settings, resulting in individual AHU modules are linked by fast connectors.
excellent operational flexibility. The AHU control system can manage the chilled
The factory-fitted electrical control panel, water coil, hot water coil, DX cooling and/or heating
complete with Direct Digital Control (DDC) is coil(s) (in conjunction with ERQ/VRV) of single
combined with in-built temperature, humidity or multiple refrigerant circuits (up to a maximum
and CO sensors to control mixing dampers, of four circuits per DX coil).
2
heat recovery wheels, water valves, pressure switches

634
