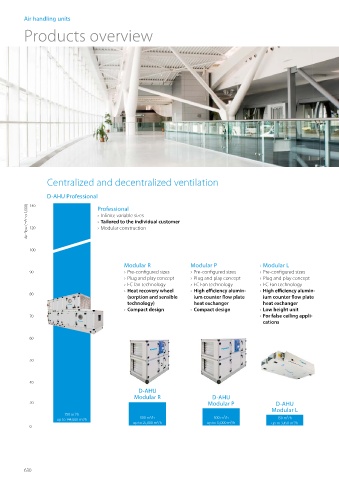

Page 632 - General Catalogue

Air handling units

Products overview

Centralized and decentralized ventilation

D-AHU Professional Professional

140
Air flow (m 3 /h x 1,000) 120 › Infinite variable sizes
› Tailored to the individual customer
› Modular construction

100

Modular R Modular P › Modular L
90 › Pre-configured sizes › Pre-configured sizes › Pre-configured sizes
› Plug and play concept › Plug and play concept › Plug and play concept
› EC fan technology › EC Fan technology › EC Fan technology
› Heat recovery wheel › High efficiency alumin- › High efficiency alumin-
80
(sorption and sensible ium counter flow plate ium counter flow plate
technology) heat exchanger heat exchanger
› Compact design › Compact design › Low height unit
70 › For false ceiling appli-
cations

60

50

40
D-AHU
Modular R D-AHU
20 Modular P D-AHU
Modular L
750 m /h
3
3
up to 144,000 m /h 500 m /h 500 m³/h 150 m³/h
3
up to 25,000 m /h up to 15,000 m³/h up to 3,450 m³/h
3
0

630
