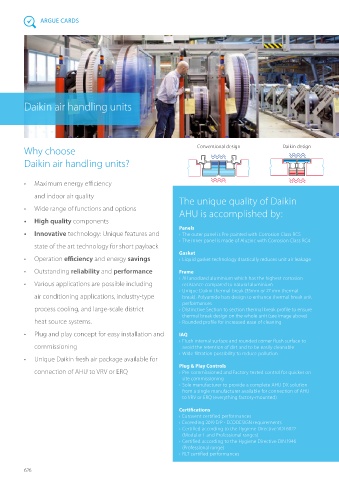

Page 628 - General Catalogue
P. 628
ARGUE CARDS
Daikin air handling units
New McQuay design
Common design
Common design New McQuay design
Daikin design
Conventional design
Why choose
Daikin air handling units?
• Maximum energy efficiency
and indoor air quality
The unique quality of Daikin
• Wide range of functions and options
AHU is accomplished by:
• High quality components
Panels
• Innovative technology: Unique features and › The outer panel is Pre-painted with Corrosion Class RC5
› The inner panel is made of Aluzinc with Corrosion Class RC4
state of the art technology for short payback
Gasket
• Operation efficiency and energy savings › Liquid gasket technology drastically reduces unit air leakage
• Outstanding reliability and performance Frame
› All anodized aluminium which has the highest corrosion
• Various applications are possible including resistance compared to natural aluminium
› Unique Daikin thermal break (35mm or 27 mm thermal
air conditioning applications, industry-type break). Polyamide bars design to enhance thermal break unit
performances
process cooling, and large-scale district › Distinctive Section to section thermal break profile to ensure
thermal break design on the whole unit (see image above)
heat source systems. › Rounded profile for increased ease of cleaning
• Plug and play concept for easy installation and IAQ
› Flush internal surface and rounded corner flush surface to
commissioning avoid the retention of dirt and to be easily cleanable
› Wide filtration possibility to reduce pollution
• Unique Daikin fresh air package available for
Plug & Play Controls
connection of AHU to VRV or ERQ › Pre-commissioned and Factory-tested control for quicker on
site commissioning
› Sole manufacturer to provide a complete AHU DX solution
from a single manufacturer available for connection of AHU
to VRV or ERQ (everything factory-mounted)
Certifications
› Eurovent certified performances
› Exceeding 2019 ErP - ECODESIGN requirements
› Certified according to the Hygiene Directive VDI 6022
(Modular L and Professional ranges)
› Certified according to the Hygiene Directive DIN 1946
(Professional range)
› RLT certified performances
