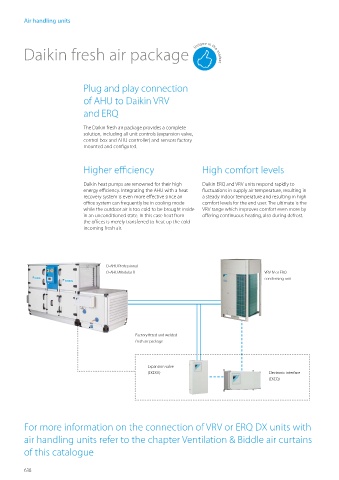

Page 640 - General Catalogue

Air handling units

Daikin fresh air package

Plug and play connection

of AHU to Daikin VRV

and ERQ

The Daikin fresh air package provides a complete
solution, including all unit controls (expansion valve,
control box and AHU controller) and sensors factory
mounted and configured.

Higher efficiency High comfort levels

Daikin heat pumps are renowned for their high Daikin ERQ and VRV units respond rapidly to
energy efficiency. Integrating the AHU with a heat fluctuations in supply air temperature, resulting in
recovery system is even more effective since an a steady indoor temperature and resulting in high
office system can frequently be in cooling mode comfort levels for the end user. The ultimate is the
while the outdoor air is too cold to be brought inside VRV range which improves comfort even more by
in an unconditioned state. In this case heat from offering continuous heating, also during defrost.
the offices is merely transferred to heat up the cold
incoming fresh air.

D-AHU Professional
D-AHU Modular R VRV IV or ERQ
condensing unit

Factory fitted and welded
fresh air package

Expansion valve
(EKEXV) Electronic interface
(EKEQ)

For more information on the connection of VRV or ERQ DX units with

air handling units refer to the chapter Ventilation & Biddle air curtains

of this catalogue
