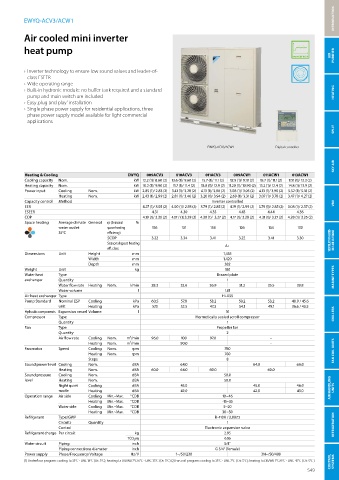

INTRODUCTION

EWYQ-ACV3/ACW1

Air cooled mini inverter

heat pump
AIR PURIFIER

› Inverter technology to ensure low sound values and leader-of-
class ESEER
› Wide operating range
› Built-in hydronic module: no buffer tank required and a standard HEATING
pump and main switch are included
› Easy ‚plug and play‘ installation
› Single phase power supply for residential applications, three
phase power supply model available for light commercial
applications
SPLIT

EWYQ-ACV3/ACW1 Digital controller

SKY AIR

Heating & Cooling EWYQ 009ACV3 010ACV3 011ACV3 009ACW1 011ACW1 013ACW1
Cooling capacity Nom. kW 12.2 (1)/ 8.60 (2) 13.6 (1)/ 9.60 (2) 15.7 (1)/ 11.1 (2) 12.9 (1)/ 9.10 (2) 15.7 (1)/ 11.1 (2) 17.0 (1)/ 13.3 (2)
Heating capacity Nom. kW 10.2 (1)/ 9.90 (2) 11.7 (1)/ 11.4 (2) 13.8 (1)/ 12.9 (2) 11.20 (1)/ 10.90 (2) 13.2 (1)/ 12.4 (2) 14.8 (1)/ 13.9 (2)
Power input Cooling Nom. kW 2.85 (1)/ 2.83 (2) 3.41 (1)/ 3.28 (2) 4.13 (1)/ 3.90 (2) 3.08 (1)/ 3.05 (2) 4.13 (1)/ 3.90 (2) 5.52 (1)/ 5.18 (2)
Heating Nom. kW 2.43 (1)/ 2.99 (2) 2.81 (1)/ 3.46 (2) 3.20 (1)/ 3.94 (2) 2.69 (1)/ 3.31 (2) 3.07 (1)/ 3.78 (2) 3.47 (1)/ 4.27 (2)
Capacity control Method Inverter controlled VRV
EER 4.27 (1)/ 3.05 (2) 4.00 (1)/ 2.93 (2) 3.79 (1)/ 2.85 (2) 4.19 (1)/ 2.99 (2) 3.79 (1)/ 2.85 (2) 3.08 (1)/ 2.57 (2)
ESEER 4.31 4.30 4.33 4.43 4.44 4.36
COP 4.19 (1)/ 3.30 (2) 4.17 / (1) 3.29 (2) 4.30 (1)/ 3.27 (2) 4.17 (1)/ 3.28 (2) 4.31 (1)/ 3.27 (2) 4.28 (1)/ 3.25 (2)
Space heating Average climate General ηs (Seasonal %
water outlet space heating 126 131 134 126 134 130
35°C efficiency)
SCOP 3.22 3.34 3.41 3.22 3.41 3.30 VENTILATION & BID- DLE AIR CURTAINS
Seasonal space heating A+
eff. class
Dimensions Unit Height mm 1,435
Width mm 1,420
Depth mm 382
Weight Unit kg 180
Water heat Type Brazed plate MARINE TYPES
exchanger Quantity 1
Water flow rate Heating Nom. l/min 28.3 32.6 36.9 31.2 35.5 39.8
Water volume l 1.01
Air heat exchanger Type Hi-XSS
Pump Standard Nominal ESP Cooling kPa 60.5 57.8 53.2 59.2 53.2 40.9 / 45.6
unit Heating kPa 57.1 52.5 47.3 54.1 49.1 36.6 / 43.5
Hydraulic components Expansion vessel Volume l 10
Compressor Type Hermetically sealed scroll compressor CHILLERS
Quantity 1
Fan Type Propeller fan
Quantity 2
Air flow rate Cooling Nom. m³/min 96.0 100 97.0 -
Heating Nom. m³/min 90.0 -
Fan motor Speed Cooling Nom. rpm 780
Heating Nom. rpm 760 FAN COIL UNITS
Steps 8
Sound power level Cooling Nom. dBA 64.0 64.0 66.0
Heating Nom. dBA 60.0 64.0 60.0 60.0
Sound pressure Cooling Nom. dBA 50.0
level Heating Nom. dBA 50.0
Night quiet Cooling dBA 45.0 45.0 46.0 UNITS
mode Heating dBA 42.0 42.0 43.0 AIR HANDLING
Operation range Air side Cooling Min.~Max. °CDB 10~46
Heating Min.~Max. °CDB -15~35
Water side Cooling Min.~Max. °CDB 5~20
Heating Min.~Max. °CDB 30~50
Refrigerant Type/GWP R-410A / 2,087.5
Circuits Quantity 1
Control Electronic expansion valve REFRIGERATION
Refrigerant charge Per circuit kg 2.95
TCO₂eq 6.16
Water circuit Piping inch 5/4“
Piping connections diameter inch G 5/4“ (female)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3N~/50/400
(1) Underfloor program: cooling Ta 35°C - LWE 18°C (Dt: 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (Dt: 5°C) (2) Fan coil program: cooling Ta 35°C - LWE 7°C ( Dt: 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( Dt: 5°C ) CONTROL SYSTEMS
