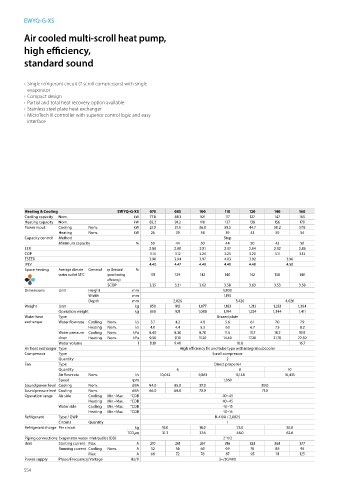

EWYQ-G-XS

Air cooled multi-scroll heat pump,

high efficiency,
standard sound

› Single refrigerant circuit (2 scroll compressors) with single
evaporator
› Compact design
› Partial and total heat recovery option available
› Stainless steel plate heat exchanger
› MicroTech III controller with superior control logic and easy
interface

Heating & Cooling EWYQ-G-XS 075 085 100 110 120 140 160
Cooling capacity Nom. kW 77.8 88.1 101 117 127 147 165
Heating capacity Nom. kW 82.2 91.2 110 127 138 156 170
Power input Cooling Nom. kW 27.0 31.5 36.0 39.5 44.7 50.2 57.8
Heating Nom. kW 26 29 34 39 43 50 54
Capacity control Method Step
Minimum capacity % 50 44 50 44 50 43 50
EER 2.88 2.80 2.81 2.97 2.84 2.92 2.85
COP 3.14 3.12 3.24 3.25 3.20 3.11 3.13
ESEER 3.90 3.94 3.97 4.03 3.92 3.96
IPLV 4.40 4.47 4.40 4.49 4.40 4.50
Space heating Average climate General ηs (Seasonal %
water outlet 35°C space heating 131 129 142 140 142 138 140
efficiency)
SCOP 3.35 3.31 3.62 3.58 3.63 3.53 3.58
Dimensions Unit Height mm 1,800
Width mm 1,195
Depth mm 2,826 3,426 4,026
Weight Unit kg 850 912 1,077 1,183 1,213 1,333 1,394
Operation weight kg 858 921 1,088 1,194 1,224 1,344 1,411
Water heat Type Brazed plate
exchanger Water flow rate Cooling Nom. l/s 3.7 4.2 4.8 5.6 6.1 7.0 7.9
Heating Nom. l/s 4.0 4.4 5.3 6.1 6.7 7.5 8.2
Water pressure Cooling Nom. kPa 8.40 8.30 8.70 11.6 13.7 18.2 19.9
drop Heating Nom. kPa 9.50 9.10 11.20 14.40 17.20 21.70 22.50
Water volume l 8.10 9.40 10.8 16.7
Air heat exchanger Type High efficiency fin and tube type with integral subcooler
Compressor Type Scroll compressor
Quantity 2
Fan Type Direct propeller
Quantity 6 8 10
Air flow rate Nom. l/s 10,042 9,861 13,148 16,435
Speed rpm 1,360
Sound power level Cooling Nom. dBA 84.0 85.0 87.0 89.0
Sound pressure level Cooling Nom. dBA 66.0 68.0 70.0 71.0
Operation range Air side Cooling Min.~Max. °CDB -10~45
Heating Min.~Max. °CDB -10~45
Water side Cooling Min.~Max. °CDB -10~15
Heating Min.~Max. °CDB -10~15
Refrigerant Type / GWP R-410A / 2,087.5
Circuits Quantity 1
Refrigerant charge Per circuit kg 15.0 18.0 23.0 30.0
TCO₂eq 31.3 37.6 48.0 62.6
Piping connections Evaporator water inlet/outlet (OD) 2“ 1/2
Unit Starting current Max A 210 261 267 316 323 363 377
Running current Cooling Nom. A 52 56 60 69 76 88 95
Max A 66 72 78 87 95 111 125
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
