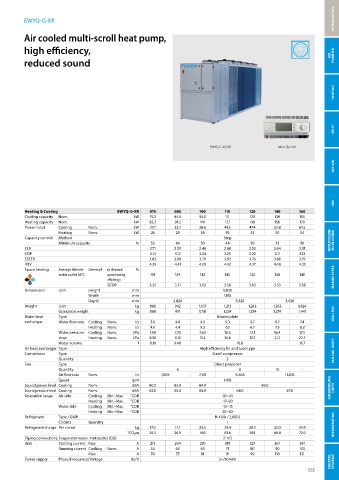

EWYQ-G-XR

Air cooled multi-scroll heat pump,

high efficiency, AIR PURIFIER
reduced sound

HEATING

SPLIT

EWYQ-G-XS/XR MicroTech III

SKY AIR

VRV
Heating & Cooling EWYQ-G-XR 075 085 100 110 120 140 160
Cooling capacity Nom. kW 75.2 84.5 95.0 111 120 139 155
Heating capacity Nom. kW 82.2 91.2 110 127 138 156 170
Power input Cooling Nom. kW 27.7 32.7 38.6 41.5 47.4 52.8 61.5
Heating Nom. kW 26 29 34 39 43 50 54
Capacity control Method Step VENTILATION & BID- DLE AIR CURTAINS
Minimum capacity % 50 44 50 44 50 43 50
EER 2.71 2.59 2.46 2.68 2.52 2.64 2.51
COP 3.14 3.12 3.24 3.25 3.20 3.11 3.13
ESEER 3.85 3.90 3.79 3.92 3.76 3.86 3.79
IPLV 4.35 4.41 4.29 4.42 4.27 4.40 4.35
Space heating Average climate General ηs (Seasonal %
water outlet 35°C space heating 131 129 142 140 142 138 140 MARINE TYPES
efficiency)
SCOP 3.35 3.31 3.62 3.58 3.63 3.53 3.58
Dimensions Unit Height mm 1,800
Width mm 1,195
Depth mm 2,826 3,426 4,026
Weight Unit kg 880 942 1,107 1,213 1,243 1,363 1,424
Operation weight kg 888 951 1,118 1,224 1,254 1,374 1,441
Water heat Type Brazed plate CHILLERS
exchanger Water flow rate Cooling Nom. l/s 3.6 4.0 4.5 5.3 5.7 6.7 7.4
Heating Nom. l/s 4.0 4.4 5.3 6.1 6.7 7.5 8.2
Water pressure Cooling Nom. kPa 7.90 7.70 7.60 10.5 12.1 16.4 17.5
drop Heating Nom. kPa 9.50 9.10 11.2 14.4 17.2 21.7 22.5
Water volume l 8.10 9.40 10.8 16.7
Air heat exchanger Type High efficiency fin and tube type
Compressor Type Scroll compressor FAN COIL UNITS
Quantity 2
Fan Type Direct propeller
Quantity 6 8 10 -
Air flow rate Nom. l/s 7,859 7,101 9,468 11,835
Speed rpm 1,108
Sound power level Cooling Nom. dBA 80.0 82.0 84.0 86.0 UNITS
Sound pressure level Cooling Nom. dBA 62.0 65.0 66.0 68.0 67.0 AIR HANDLING
Operation range Air side Cooling Min.~Max. °CDB -10~45
Heating Min.~Max. °CDB -17~20
Water side Cooling Min.~Max. °CDB -10~15
Heating Min.~Max. °CDB 25~50
Refrigerant Type / GWP R-410A / 2,087.5
Circuits Quantity 1
Refrigerant charge Per circuit kg 17.0 17.7 23.5 29.4 28.3 32.0 34.9 REFRIGERATION
TCO₂eq 35.5 36.9 49.1 61.4 59.1 66.8 72.9
Piping connections Evaporator water inlet/outlet (OD) 2“ 1/2
Unit Starting current Max A 213 264 270 319 327 367 381
Running current Cooling Nom. A 54 60 65 71 80 90 103
Max A 70 75 81 91 99 116 131
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400 CONTROL SYSTEMS
