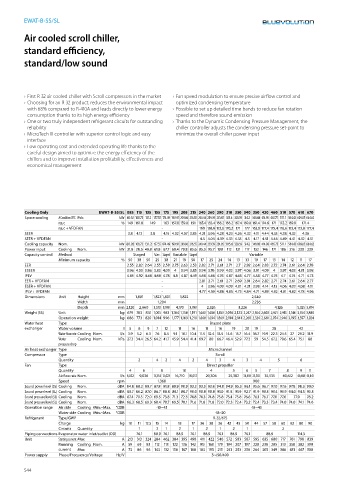

EWAT-B-SS/SL

Air cooled scroll chiller,

standard efficiency,
standard/low sound

› First R-32 air cooled chiller with Scroll compressors in the market › Fan speed modulation to ensure precise airflow control and
› Choosing for an R-32 product, reduces the environmental impact optimized condensing temperature
with 68% compared to R-410A and leads directly to lower energy › Possible to set up detailed time bands to reduce fan rotation
consumption thanks to its high energy efficiency speed and therefore sound emission
› One or two truly independent refrigerant circuits for outstanding › Thanks to the Dynamic Condensing Pressure Management, the
reliability chiller controller adjusts the condensing pressure set-point to
› MicroTech III controller with superior control logic and easy minimize the overall chiller power input
interface
› Low operating cost and extended operating life thanks to the
careful design aimed to optimize the energy efficiency of the
chillers and to improve installation profitability, effectiveness and
economical management

Cooling Only EWAT-B-SS/SL 085 115 135 155 175 195 205 215 240 260 290 310 330 340 350 420 460 510 570 610 670
Space cooling A Condition 35°C Pdc kW 80.92 108.73 131.2 157.55 174.49 190.91 209.86 216.55 240.44 259.39 281.85 305.6 328.59 342 348.88 414.98 465.75 511.1 564.43 609.05 664.62
ηs,c % 149 161.8 149 163 157.8 159.8 151 165.4 155.4 168.2 166.2 167.4 169.8 161.4 174.6 171 172.2 169.8 171.4
ηs,c + VFDFAN - 169 158,6 172,6 170,2 171 177 163,8 177,4 175,4 176,6 173,4 173,8 177,4
SEER 3.8 4.12 3.8 4.15 4.02 4.07 3.85 4.21 3.96 4.28 4.23 4.26 4.32 4.11 4.44 4.35 4.38 4.32 4.36
SEER + VFDFAN - 4.3 4.04 4.39 4.33 4.35 4.5 4.17 4.51 4.46 4.49 4.41 4.42 4.51
Cooling capacity Nom. kW 80.92 108.73 131.2 157.55 174.49 190.91 209.86 216.55 240.44 259.39 281.85 305.6 328.59 342 348.88 414.98 465.75 511.1 564.43 609.05 664.62
Power input Cooling Nom. kW 31.8 38.5 49.8 61.8 67.7 69.4 79.8 85.6 85.3 95.7 108 112 121 117 132 146 171 186 216 230 239
Capacity control Method Staged Var. Staged Variable Staged Variable
Minimum capacity % 50 38 50 25 38 21 19 50 17 25 24 14 13 33 19 17 15 14 12 11 17
EER 2.55 2.82 2.64 2.55 2.58 2.75 2.63 2.53 2.82 2.71 2.61 2.71 2.7 2.92 2.64 2.83 2.72 2.74 2.61 2.64 2.78
ESEER 3.96 4.03 3.86 3.83 4.09 4 3.94 3.85 3.94 3.76 3.99 4.02 3.97 4.06 3.91 4.09 4 3.97 4.03 4.01 3.98
IPLV 4.65 4.92 4.46 4.68 4.78 4.8 4.87 4.49 4.66 4.46 4.76 4.67 4.65 4.77 4.58 4.77 4.75 4.7 4.74 4.71 4.73
EER + VFDFAN - 2.81 2.71 2.61 2.71 2.69 2.91 2.64 2.82 2.71 2.74 2.61 2.64 2.77
ESER + VFDFAN - 4 3.86 4.09 4.09 4.01 4.21 3.98 4.14 4.13 4.06 4.03 4.08 4.11
IPLV + VFDFAN - 4.77 4.59 4.88 4.85 4.73 4.84 4.71 4.89 4.92 4.81 4.82 4.78 4.96
Dimensions Unit Height mm 1,801 1,822 1,801 1,822 2,540
Width mm 1,204 2,236
Depth mm 2,120 2,660 3,570 3,180 4,170 3,780 2,326 3,226 4,126 5,025 5,874
Weight (SS) Unit kg 679 763 810 1,005 983 1,164 1,156 1,191 1,660 1,688 1,853 2,096 2,123 2,247 2,304 2,600 2,921 2,913 3,148 3,554 3,888
Operation weight kg 686 773 820 1,014 996 1,177 1,169 1,210 1,668 1,694 1,869 2,114 2,141 2,268 2,324 2,630 2,954 2,946 3,195 3,597 3,924
Water heat Type Brazed plate
exchanger Water volume l 5 6 9 7 12 11 16 11 16 19 20 19 28 42
Water flow rate Cooling Nom. l/s 3.9 5.2 6.3 7.6 8.4 9.1 10.1 10.4 11.5 12.4 13.5 14.6 15.7 16.4 16.7 19.9 22.3 24.5 27 29.2 31.9
Water Cooling Nom. kPa 27.3 34.4 26.5 64.2 41.7 45.9 54.4 41.4 69.7 80 66.7 46.4 52.9 77.2 59 54.5 67.2 79.6 65.4 75.1 88
pressure drop
Air heat exchanger Type Microchannel
Compressor Type Scroll
Quantity 2 4 2 4 2 4 3 4 3 4 5 6
Fan Type Direct propeller
Quantity 4 6 8 10 4 5 6 5 7 8 9 11
Air flow rate Nom. l/s 6,022 9,036 13,354 12,023 16,710 15,057 20,306 25,382 30,459 25,382 35,535 40,612 45,688 55,841
Speed rpm 1,360 900
Sound power level (SS) Cooling Nom. dBA 84.8 88.2 89.7 87.8 91.8 89.9 90.9 93.2 93.3 93.8 94.8 94.9 95.3 96.1 95.6 96.7 97.0 97.6 97.8 98.3 99.0
Sound power level (SL) Cooling Nom. dBA 83.7 86.2 87.0 86.7 88.8 88.1 88.7 90.0 90.8 90.8 91.0 91.8 91.9 92.7 91.9 93.3 93.4 93.9 94.0 94.5 95.3
Sound pressure level (SS) Cooling Nom. dBA 67.4 70.5 72.0 69.5 73.8 71.3 72.3 74.8 74.3 74.8 75.8 75.4 75.8 76.6 76.1 76.7 77.0 77.6 77.9 78.2
Sound pressure level (SL) Cooling Nom. dBA 66.3 68.5 69.3 68.4 70.7 69.5 70.1 71.6 71.8 71.8 72.0 72.3 72.4 73.2 72.4 73.3 73.4 74.0 74.0 74.1 74.6
Operation range Air side Cooling Min.~Max. °CDB -10~43 -18~43
Water side Cooling Min.~Max. °CDB -13~20
Refrigerant Type/GWP R-32/675
Charge kg 10 11 12.5 15 14 18 17 36 38 36 42 43 50 44 57 58 60 62 80 90
Circuits Quantity 1 2 1 2 1 2 1 2 1 2
Piping connections Evaporator water inlet/outlet (OD) 76.1 88.9 76.1 88.9 76.1 88.9 76.1 88.9 76.1 88.9 114.3
Unit Starting current Max A 213 313 324 284 462 384 395 498 411 422 546 572 583 587 595 635 680 717 761 798 839
Running Cooling Nom. A 59 69 83 112 113 122 136 142 147.0 160 179 194 207 197 220 238 285 310 358 382 399
current Max A 73 86 96 143 132 156 167 168 183 195 215 241 253 256 264 305 349 386 431 467 508
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
