INTRODUCTION
FREE
cooling AIR PURIFIER

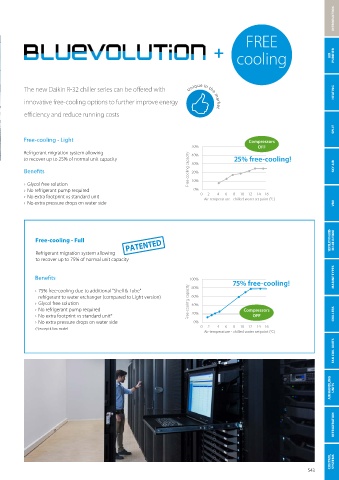

The new Daikin R-32 chiller series can be offered with HEATING
innovative free-cooling options to further improve energy
efficiency and reduce running costs
SPLIT
Free-cooling - Light Compressors
50% OFF
Refrigerant migration system allowing 40%
to recover up to 25% of normal unit capacity 30% 25% free-cooling!
Benefits Free-cooling capacity 20% SKY AIR
› Glycol free solution 10%
› No refrigerant pump required 0%
16
10
12
14
2
8
4
6
› No extra footprint vs standard unit 0 Air temperature - chilled water setpoint (°C)
› No extra pressure drops on water side VRV
Free-cooling - Full VENTILATION & BID- DLE AIR CURTAINS
PATENTED
Refrigerant migration system allowing
to recover up to 75% of normal unit capacity
Benefits 100% 75% free-cooling! MARINE TYPES
› 75% free-cooling due to additional "Shell & Tube" 80%
refrigerant to water erchanger (compared to Light version) 60%
› Glycol free solution Free-cooling capacity 40%
› No refrigerant pump required Compressors
› No extra footprint vs standard unit* 20% OFF CHILLERS
› No extra pressure drops on water side 0%
0 2 4 6 8 10 12 14 16
(*) except 4 fans model
Air temperature - chilled water setpoint (°C)
