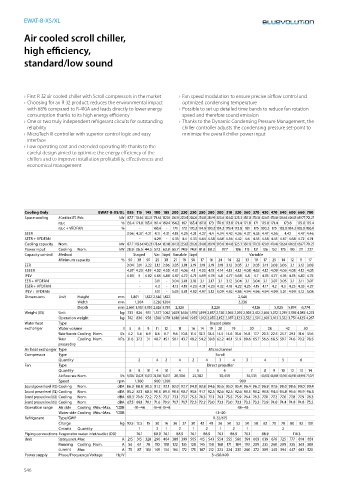

Page 548 - General Catalogue

EWAT-B-XS/XL

Air cooled scroll chiller,

high efficiency,
standard/low sound

› First R-32 air cooled chiller with Scroll compressors in the market › Fan speed modulation to ensure precise airflow control and
› Choosing for an R-32 product, reduces the environmental impact optimized condensing temperature
with 68% compared to R-410A and leads directly to lower energy › Possible to set up detailed time bands to reduce fan rotation
consumption thanks to its high energy efficiency speed and therefore sound emission
› One or two truly independent refrigerant circuits for outstanding › Thanks to the Dynamic Condensing Pressure Management, the
reliability chiller controller adjusts the condensing pressure set-point to
› MicroTech III controller with superior control logic and easy minimize the overall chiller power input
interface
› Low operating cost and extended operating life thanks to the
careful design aimed to optimize the energy efficiency of the
chillers and to improve installation profitability, effectiveness and
economical management

Cooling Only EWAT-B-XS/XL 085 115 145 180 185 200 220 230 250 280 300 310 320 360 370 430 470 540 600 660 700
Space cooling A Condition 35°C Pdc kW 87.7 113.64 143.23 178.64 182.18 200.33 225.65 238.26 254.08 280.99 303.6 304.42 325.3 350.13 370.33 423.61 470.48 536.64 606.55 659.77 701.27
ηs,c % 155.4 171.8 165.4 161.4 169.4 164.2 167 165.4 167.8 173 170.6 173.8 171.4 171.8 171 175.8 171.4 173.8 175.8 175.4
ηs,c + VFDFAN % - 168.6 - 171 173 170.2 174.6 180.2 184.2 179.4 173.8 181 175 180.2 175 183.8 184.2 185.8 186.6
SEER 3.96 4.37 4.21 4.11 4.31 4.18 4.25 4.21 4.27 4.4 4.34 4.42 4.36 4.37 4.35 4.47 4.36 4.42 4.47 4.46
SEER + VFDFAN - 4.29 - 4.35 4.4 4.33 4.44 4.58 4.68 4.56 4.42 4.6 4.45 4.58 4.45 4.67 4.68 4.72 4.74
Cooling capacity Nom. kW 87.7 113.64 143.23 178.64 182.18 200.33 225.65 238.26 254.08 280.99 303.6 304.42 325.3 350.13 370.33 423.61 470.48 536.64 606.55 659.77 701.27
Power input Cooling Nom. kW 28.9 36.5 44.5 57.2 63.8 65.7 74.9 74.8 81.8 88.2 97.7 106 113 121 136 152 175 195 211 227
Capacity control Method Staged Var. Staged Variable Staged Variable
Minimum capacity % 50 38 50 25 38 21 19 50 17 16 24 14 22 33 19 17 25 14 12 11 17
EER 3.04 3.11 3.22 3.12 2.86 3.05 3.01 3.19 3.11 3.19 3.11 3.12 3.05 3.1 3.05 3.11 3.08 3.06 3.1 3.12 3.08
ESEER 4.07 4.23 4.19 4.02 4.05 4.01 4.06 4.1 4.03 4.15 4.14 4.13 4.12 4.08 4.03 4.12 4.09 4.06 4.08 4.12 4.05
IPLV 4.83 5 4.82 4.65 4.88 4.67 4.72 4.71 4.69 4.78 4.8 4.77 4.68 4.8 4.7 4.78 4.77 4.76 4.78 4.82 4.75
EER + VFDFAN - 3.11 - 3.04 3.01 3.18 3.1 3.17 3.1 3.12 3.04 3.1 3.04 3.1 3.07 3.05 3.1 3.11 3.07
ESER + VFDFAN - 4.3 - 4.13 4.19 4.23 4.21 4.23 4.32 4.18 4.22 4.25 4.15 4.17 4.2 4.3 4.25 4.33 4.27
IPLV + VFDFAN - 5.11 - 5.05 5.01 4.92 4.97 5.12 5.09 4.92 4.86 4.94 4.96 4.94 4.99 5.01 4.99 5.12 5.08
Dimensions Unit Height mm 1,801 1,822 2,540 1,822 2,540
Width mm 1,204 2,236 1,204 2,236
Depth mm 2,660 3,180 3,780 2,326 3,780 2,326 3,226 4,126 5,025 5,874 6,774
Weight (XS) Unit kg 733 826 951 1,577 1,062 1,609 1,636 1,915 1,899 2,037 2,130 2,065 2,093 2,508 2,472 2,656 3,072 3,293 3,708 4,083 4,231
Operation weight kg 742 836 958 1,588 1,078 1,618 1,646 1,935 1,912 2,055 2,152 2,087 2,123 2,532 2,501 2,693 3,103 3,332 3,751 4,125 4,267
Water heat Type Brazed plate
exchanger Water volume l 5 6 9 11 12 11 16 14 19 20 19 20 28 42 50
Water flow rate Cooling Nom. l/s 4.2 5.4 6.9 8.6 8.7 9.6 10.8 11.4 12.2 13.4 14.5 14.6 15.6 16.8 17.7 20.3 22.5 25.7 29.1 31.6 33.6
Water Cooling Nom. kPa 31.6 37.3 31 40.7 45.1 50.1 43.7 49.2 54.2 39.8 62.2 46.1 51.9 80.6 65.7 56.6 68.5 59.7 74.6 70.2 78.5
pressure drop
Air heat exchanger Type Microchannel
Compressor Type Scroll
Quantity 2 4 2 4 2 4 3 4 3 4 5 6
Fan Type Direct propeller
Quantity 6 8 10 4 10 4 5 6 7 8 9 10 12 13 14
Air flow rate Nom. l/s 9,036 12,023 15,057 20,306 15,057 20,306 25,382 30,459 35,535 40,612 45,688 50,765 60,918 65,994 71,071
Speed rpm 1,360 900 1,360 900
Sound power level (XS) Cooling Nom. dBA 86.0 88.8 90.5 91.2 92.1 92.0 92.7 94.8 93.8 94.6 95.6 95.0 95.4 96.4 96.2 96.9 97.6 98.0 98.6 99.0 99.4
Sound power level (XL) Cooling Nom. dBA 85.2 87.1 88.5 90.6 89.3 90.6 90.7 91.8 91.7 92.5 92.6 92.5 92.6 93.3 93.2 93.8 94.4 94.8 95.6 95.9 96.3
Sound pressure level (XS) Cooling Nom. dBA 68.3 70.8 72.2 72.3 73.7 73.1 73.7 75.3 74.3 75.1 76.1 75.5 75.9 76.4 76.3 77.0 77.2 77.6 77.8 77.9 78.3
Sound pressure level (XL) Cooling Nom. dBA 67.5 69.1 70.1 71.6 70.9 71.7 71.7 72.3 72.2 73.0 73.1 73.0 73.1 73.3 73.3 73.9 74.0 74.4 74.8 74.8 75.2
Operation range Air side Cooling Min.~Max. °CDB -10~46 -18~46 -10~46 -18~46
Water side Cooling Min.~Max. °CDB -13~20
Refrigerant Type/GWP R-32/675
Charge kg 10.5 12.5 15 30 16 36 37 30 42 48 36 50 52 50 58 62 70 78 80 92 100
Circuits Quantity 1 2 1 2 1 2 1 2 1 2
Piping connections Evaporator water inlet/outlet (OD) 76.1 88.9 76.1 88.9 76.1 88.9 76.1 88.9 76.1 88.9 114.3
Unit Starting current Max A 215 315 328 290 464 388 399 505 415 543 554 555 566 591 603 639 676 725 777 814 851
Running Cooling Nom. A 56 67 78 110 108 122 135 128 145 158 168 171 184 193 209 235 260 299 335 361 388
current Max A 75 87 100 149 134 160 172 175 187 212 223 224 235 260 272 309 345 394 447 483 520
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400

546
