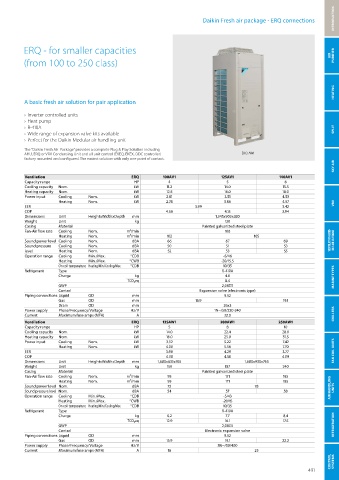

Daikin Fresh air package - ERQ connections

ERQ - for smaller capacities AIR PURIFIER
(from 100 to 250 class)

HEATING

A basic fresh air solution for pair application
› Inverter controlled units
› Heat pump
› R-410A SPLIT
› Wide range of expansion valve kits available
› Perfect for the Daikin Modular air handling unit

The “Daikin Fresh Air Package” provides a complete Plug & Play Solution including
AHU, ERQ or VRV Condensing Unit and all unit control (EKEQ, EKEX, DDC controller) ERQ-AW1
factory mounted and configured. The easiest solution with only one point of contact.
SKY AIR

Ventilation ERQ 100AV1 125AV1 140AV1
Capacity range HP 4 5 6
Cooling capacity Nom. kW 11.2 14.0 15.5
Heating capacity Nom. kW 12.5 16.0 18.0
Power input Cooling Nom. kW 2.81 3.51 4.53
Heating Nom. kW 2.74 3.86 4.57
EER 3.99 3.42 VRV
COP 4.56 4.15 3.94
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320
Weight Unit kg 120
Casing Material Painted galvanized steel plate
Fan-Air flow rate Cooling Nom. m³/min 106
Heating Nom. m³/min 102 105
Sound power level Cooling Nom. dBA 66 67 69 VENTILATION & BID- DLE AIR CURTAINS
Sound pressure Cooling Nom. dBA 50 51 53
level Heating Nom. dBA 52 53 55
Operation range Cooling Min./Max. °CDB -5/46
Heating Min./Max. °CWB -20/15.5
On coil temperature Heating/Min./Cooling/Max. °CDB 10/35
Refrigerant Type R-410A
Charge kg 4.0 MARINE TYPES
TCO₂eq 8.4
GWP 2,087.5
Control Expansion valve (electronic type)
Piping connections Liquid OD mm 9.52
Gas OD mm 15.9 19.1
Drain OD mm 26x3
Power supply Phase/Frequency/Voltage Hz/V 1N~/50/220-240
Current Maximum fuse amps (MFA) A 32.0 CHILLERS
Ventilation ERQ 125AW1 200AW1 250AW1
Capacity range HP 5 8 10
Cooling capacity Nom. kW 14.0 22.4 28.0
Heating capacity Nom. kW 16.0 25.0 31.5
Power input Cooling Nom. kW 3.52 5.22 7.42
Heating Nom. kW 4.00 5.56 7.70
EER 3.98 4.29 3.77 FAN COIL UNITS
COP 4.00 4.50 4.09
Dimensions Unit HeightxWidthxDepth mm 1,680x635x765 1,680x930x765
Weight Unit kg 159 187 240
Casing Material Painted galvanized steel plate
Fan-Air flow rate Cooling Nom. m³/min 95 171 185
Heating Nom. m³/min 95 171 185
Sound power level Nom. dBA 72 78 AIR HANDLING UNITS
Sound pressure level Nom. dBA 54 57 58
Operation range Cooling Min./Max. °CDB -5/43
Heating Min./Max. °CWB -20/15
On coil temperature Heating/Min./Cooling/Max. °CDB 10/35
Refrigerant Type R-410A
Charge kg 6.2 7.7 8.4
TCO₂eq 12.9 16.1 17.5
GWP 2,087.5 REFRIGERATION
Control Electronic expansion valve
Piping connections Liquid OD mm 9.52
Gas OD mm 15.9 19.1 22.2
Power supply Phase/Frequency/Voltage Hz/V 3N~/50/400
Current Maximum fuse amps (MFA) A 16 25
