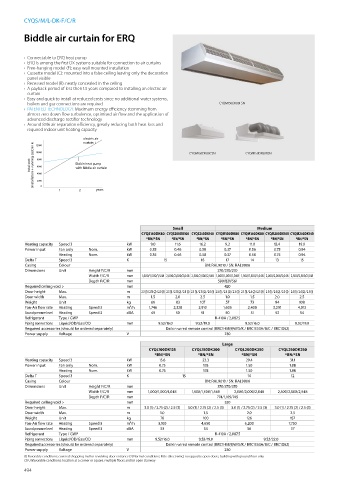

CYQS/M/L-DK-F/C/R

Biddle air curtain for ERQ

› Connectable to ERQ heat pump
› ERQ is among the first DX systems suitable for connection to air curtains
› Free-hanging model (F): easy wall mounted installation
› Cassette model (C): mounted into a false ceiling leaving only the decoration
panel visible
› Recessed model (R): neatly concealed in the ceiling
› A payback period of less then 1.5 years compared to installing an electric air
curtain
› Easy and quick to install at reduced costs since no additional water systems,
boilers and gas connections are required CYQM150DK80FSN
› PATENTED TECHNOLOGY: Maximum energy efficiency stemming from
almost zero down flow turbulence, optimised air flow and the application of
advanced discharge rectifier technology
› Around 85% air separation efficiency, greatly reducing both heat loss and
required indoor unit heating capacity
electric air
curtain CYQM150DK80CSN CYQM150DK80RSN
(installation + running cost) in € 6000 with Biddle air curtain
12000
10000
total cost 8000 Daikin heat pump

4000
2000
0
1 2 years

Small Medium
CYQS150DK80 CYQS200DK100 CYQS250DK140 CYQM100DK80 CYQM150DK80 CYQM200DK100 CYQM250DK140
*BN/*SN *BN/*SN *BN/*SN *BN/*SN *BN/*SN *BN/*SN *BN/*SN
Heating capacity Speed 3 kW 9.0 11.6 16.2 9.2 11.0 13.4 19.9
Power input Fan only Nom. kW 0.35 0.46 0.58 0.37 0.56 0.75 0.94
Heating Nom. kW 0.35 0.46 0.58 0.37 0.56 0.75 0.94
Delta T Speed 3 K 15 16 17 14 13 15
Casing Colour BN: RAL9010 / SN: RAL9006
Dimensions Unit Height F/C/R mm 270/270/270
Width F/C/R mm 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548 1,000/1,000/1,048 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548
Depth F/C/R mm 590/821/561
Required ceiling void > mm 420
Door height Max. m 2.3 (1) / 2.15 (2) / 2.0 (3) 2.3 (1) / 2.15 (2) / 2.0 (3) 2.3 (1) / 2.15 (2) / 2.0 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3)
Door width Max. m 1.5 2.0 2.5 1.0 1.5 2.0 2.5
Weight Unit kg 66 83 107 57 73 94 108
Fan-Air flow rate Heating Speed 3 m³/h 1,746 2,328 2,910 1,605 2,408 3,210 4,013
Sound pressure level Heating Speed 3 dBA 49 50 51 50 51 53 54
Refrigerant Type / GWP R-410A / 2,087.5
Piping connections Liquid/OD/Gas/OD mm 9.52/16.0 9.52/19.0 9.52/16.0 9.52/19.0
Required accessories (should be ordered separately) Daikin wired remote control (BRC1H51(9)W/S/K / BRC1E53A/B/C / BRC1D52)
Power supply Voltage V 230
Large
CYQL100DK125 CYQL150DK200 CYQL200DK250 CYQL250DK250
*BN/*SN *BN/*SN *BN/*SN *BN/*SN
Heating capacity Speed 3 kW 15.6 23.3 29.4 31.1
Power input Fan only Nom. kW 0.75 1.13 1.50 1.88
Heating Nom. kW 0.75 1.13 1.50 1.88
Delta T Speed 3 K 15 14 12
Casing Colour BN: RAL9010 / SN: RAL9006
Dimensions Unit Height F/C/R mm 370/370/370
Width F/C/R mm 1,000/1,000/1,048 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548
Depth F/C/R mm 774/1,105/745
Required ceiling void > mm 520
Door height Max. m 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3)
Door width Max. m 1.0 1.5 2.0 2.5
Weight Unit kg 76 100 126 157
Fan-Air flow rate Heating Speed 3 m³/h 3,100 4,650 6,200 7,750
Sound pressure level Heating Speed 3 dBA 53 54 56 57
Refrigerant Type / GWP R-410A / 2,087.5
Piping connections Liquid/OD/Gas/OD mm 9.52/16.0 9.52/19.0 9.52/22.0
Required accessories (should be ordered separately) Daikin wired remote control (BRC1H51(9)W/S/K / BRC1E53A/B/C / BRC1D52)
Power supply Voltage V 230
(1) Favorable conditions: covered shopping mall or revolving door entrance (2) Normal conditions: little direct wind, no opposite open doors, building with ground floor only
(3) Unfavorable conditions: location at a corner or square, multiple floors and/or open stairway
