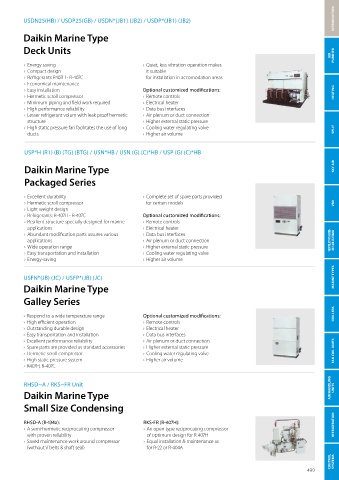

Page 501 - General Catalogue

INTRODUCTION

USDN25(HB) / USDP25(GB) / USDN*(JB1) (JB2) / USDP*(JB1) (JB2)

Daikin Marine Type

Deck Units
AIR PURIFIER

› Energy saving › Quiet, less vibration operation makes
› Compact design it suitable
› Refrigerants R407H - R-407C for installation in accomodation areas
› Economical maintenance
› Easy installation Optional customized modifications: HEATING
› Hermetic scroll compressor › Remote controls
› Minimum piping and field work required › Electrical heater
› High performance reliability › Data bus interfaces
› Lesser refrigerant volum with leak proof hermetic › Air plenum or duct connection
structure › Higher external static pressure
› High static pressure fan facilitates the use of long › Cooling water regulating valve SPLIT
ducts › Higher air volume

USP*H (R1) (B) (TG) (BTG) / USN*HB / USN (G) (C)*HB / USP (G) (C)*HB

Daikin Marine Type SKY AIR

Packaged Series
› Excellent durability › Complete set of spare parts provided
› Hermetic scroll compressor for certain models VRV
› Light weight design
› Refrigerants: R-407H - R-407C Optional customized modifications:
› Resilient structure specially designed for marine › Remote controls
applications › Electrical heater
› Abundant modification parts assures various › Data bus interfaces
applications › Air plenum or duct connection VENTILATION & BID- DLE AIR CURTAINS
› Wide operation range › Higher external static pressure
› Easy transportation and installation › Cooling water regulating valve
› Energy-saving › Higher air volume

USFN*(JB) (JC) / USFP*(JB) (JC) MARINE TYPES
Daikin Marine Type

Galley Series

› Respond to a wide temperature range Optional customized modifications: CHILLERS
› High efficient operation › Remote controls
› Outstanding durable design › Electrical heater
› Easy transportation and installation › Data bus interfaces
› Excellent performance reliability › Air plenum or duct connection
› Spare parts are provided as standard accessories › Higher external static pressure
› Hermetic scroll compressor › Cooling water regulating valve FAN COIL UNITS
› High static pressure system › Higher air volume
› R407H, R-407C

RHSD~A / RKS~FR Unit AIR HANDLING UNITS
Daikin Marine Type

Small Size Condensing

RHSD-A (R-134a): RKS-FR (R-407H): REFRIGERATION
› A semi-hermetic reciprocating compressor › An open type reciprocating compressor
with proven reliability of optimum design for R-407H
› Saved maintenance work around compressor › Equal installation & maintenance as
(without V belts & shaft seal) for R-22 or R-404A
CONTROL SYSTEMS
