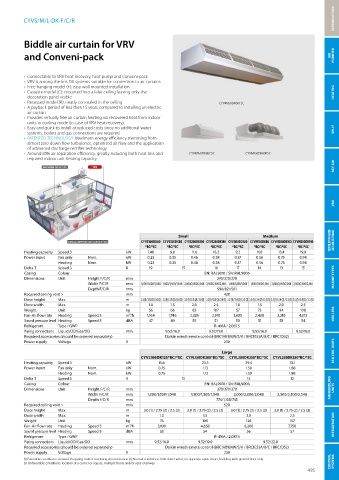

INTRODUCTION

CYVS/M/L-DK-F/C/R

Biddle air curtain for VRV

and Conveni-pack AIR PURIFIER

› Connectable to VRV heat recovery, heat pump and Conveni-pack
› VRV is among the first DX systems suitable for connection to air curtains
› Free-hanging model (F): easy wall mounted installation
› Cassette model (C): mounted into a false ceiling leaving only the HEATING
decoration panel visible
› Recessed model (R): neatly concealed in the ceiling CYVM150DK80FSC
› A payback period of less then 1.5 years compared to installing an electric
air curtain
› Provides virtually free air curtain heating via recovered heat from indoor
units in cooling mode (in case of VRV heat recovery)
› Easy and quick to install at reduced costs since no additional water SPLIT
systems, boilers and gas connections are required
› PATENTED TECHNOLOGY: Maximum energy efficiency stemming from
almost zero down flow turbulence, optimised air flow and the application
of advanced discharge rectifier technology
› Around 85% air separation efficiency, greatly reducing both heat loss and CYVM150DK80CSC CYVM150DK80RSC
required indoor unit heating capacity
SKY AIR
NETWORK SOLUTION VRV

VRV

Small Medium
BIDDLE COMFORT AIR CURTAIN (CA) CYVS100DK80 CYVS150DK80 CYVS200DK100 CYVS250DK140 CYVM100DK80 CYVM150DK80 CYVM200DK100 CYVM250DK140 VENTILATION & BID- DLE AIR CURTAINS
*BC/*SC *BC/*SC *BC/*SC *BC/*SC *BC/*SC *BC/*SC *BC/*SC *BC/*SC
Heating capacity Speed 3 kW 7.40 9.0 11.6 16.2 9.2 11.0 13.4 19.9
Power input Fan only Nom. kW 0.23 0.35 0.46 0.58 0.37 0.56 0.75 0.94
Heating Nom. kW 0.23 0.35 0.46 0.58 0.37 0.56 0.75 0.94
Delta T Speed 3 K 19 15 16 17 14 13 15
Casing Colour BN: RAL9010 / SN: RAL9006
Dimensions Unit Height F/C/R mm 270/270/270 MARINE TYPES
Width F/C/R mm 1,000/1,000/1,048 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548 1,000/1,000/1,048 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548
Depth F/C/R mm 590/821/561
Required ceiling void > mm 420
Door height Max. m 2.3 (1) / 2.15 (2) / 2.0 (3) 2.3 (1) / 2.15 (2) / 2.0 (3) 2.3 (1) / 2.15 (2) / 2.0 (3) 2.3 (1) / 2.15 (2) / 2.0 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3) 2.5 (1) / 2.4 (2) / 2.3 (3)
Door width Max. m 1.0 1.5 2.0 2.5 1.0 1.5 2.0 2.5
Weight Unit kg 56 66 83 107 57 73 94 108
Fan-Air flow rate Heating Speed 3 m³/h 1,164 1,746 2,328 2,910 1,605 2,408 3,210 4,013 CHILLERS
Sound pressure level Heating Speed 3 dBA 47 49 50 51 50 51 53 54
Refrigerant Type / GWP R-410A / 2,087.5
Piping connections Liquid/OD/Gas/OD mm 9.52/16.0 9.52/19.0 9.52/16.0 9.52/19.0
Required accessories (should be ordered separately) Daikin wired remote control (BRC1H51(9)W/S/K / BRC1E53A/B/C / BRC1D52)
Power supply Voltage V 230

Large FAN COIL UNITS
CYVL100DK125*BC/*SC CYVL150DK200*BC/*SC CYVL200DK250*BC/*SC CYVL250DK250*BC/*SC
Heating capacity Speed 3 kW 15.6 23.3 29.4 31.1
Power input Fan only Nom. kW 0.75 1.13 1.50 1.88
Heating Nom. kW 0.75 1.13 1.50 1.88
Delta T Speed 3 K 15 14 12
Casing Colour BN: RAL9010 / SN: RAL9006
Dimensions Unit Height F/C/R mm 370/370/370 AIR HANDLING UNITS
Width F/C/R mm 1,000/1,000/1,048 1,500/1,500/1,548 2,000/2,000/2,048 2,500/2,500/2,548
Depth F/C/R mm 774/1,105/745
Required ceiling void > mm 520
Door height Max. m 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3) 3.0 (1) / 2.75 (2) / 2.5 (3)
Door width Max. m 1.0 1.5 2.0 2.5
Weight Unit kg 76 100 126 157
Fan-Air flow rate Heating Speed 3 m³/h 3,100 4,650 6,200 7,750 REFRIGERATION
Sound pressure level Heating Speed 3 dBA 53 54 56 57
Refrigerant Type / GWP R-410A / 2,087.5
Piping connections Liquid/OD/Gas/OD mm 9.52/16.0 9.52/19.0 9.52/22.0
Required accessories (should be ordered separately) Daikin wired remote control (BRC1H51(9)W/S/K / BRC1E53A/B/C / BRC1D52)
Power supply Voltage V 230
(1) Favorable conditions: covered shopping mall or revolving door entrance (2) Normal conditions: little direct wind, no opposite open doors, building with ground floor only
(3) Unfavorable conditions: location at a corner or square, multiple floors and/or open stairway CONTROL SYSTEMS
