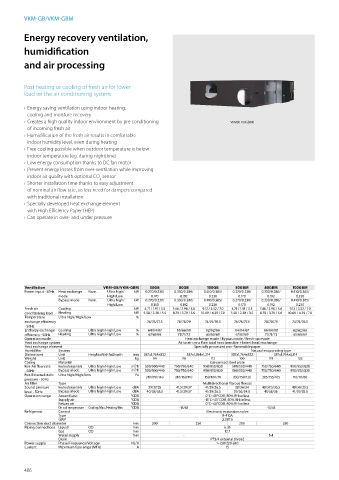

VKM-GB/VKM-GBM

Energy recovery ventilation,

humidification

and air processing

Post heating or cooling of fresh air for lower
load on the air conditioning system

› Energy saving ventilation using indoor heating,
cooling and moisture recovery
› Creates a high quality indoor environment by pre conditioning VKM80-100GB(M)
of incoming fresh air
› Humidification of the fresh air results in comfortable
indoor humidity level, even during heating
› Free cooling possible when outdoor temperature is below
indoor temperature (eg. during nighttime)
› Low energy consumption thanks to DC fan motor
› Prevent energy losses from over-ventilation while improving
indoor air quality with optional CO sensor
2
› Shorter installation time thanks to easy adjustment
of nominal air flow rate, so less need for dampers compared
with traditional installation
› Specially developed heat exchange element
with High Efficiency Paper (HEP)
› Can operate in over- and under pressure

Ventilation VKM-GB/VKM-GBM 50GB 80GB 100GB 50GBM 80GBM 100GBM
Power input - 50Hz Heat exchange Nom. Ultra high/ kW 0.270/0.230/ 0.330/0.280/ 0.410/0.365/ 0.270/0.230/ 0.330/0.280/ 0.410/0.365/
mode High/Low 0.170 0.192 0.230 0.170 0.192 0.230
Bypass mode Nom. Ultra high/ kW 0.270/0.230/ 0.330/0.280/ 0.410/0.365/ 0.270/0.230/ 0.330/0.280/ 0.410/0.365/
High/Low 0.140 0.192 0.230 0.170 0.192 0.230
Fresh air Cooling kW 4.71 / 1.91 / 3.5 7.46 / 2.96 / 5.6 9.12 / 3.52 / 7.0 4.71 / 1.91 / 3.5 7.46 / 2.96 / 5.6 9.12 / 3.52 / 7.0
conditioning load Heating kW 5.58 / 2.38 / 3.5 8.79 / 3.79 / 5.6 10.69 / 4.39 / 7.0 5.58 / 2.38 / 3.5 8.79 / 3.79 / 5.6 10.69 / 4.39 / 7.0
Temperature Ultra high/High/Low %
exchange efficiency 76/76/77.5 78/78/79 74/74/76.5 76/76/77.5 78/78/79 74/74/76.5
- 50Hz
Enthalpy exchange Cooling Ultra high/High/Low % 64/64/67 66/66/68 62/62/66 64/64/67 66/66/68 62/62/66
efficiency - 50Hz Heating Ultra high/High/Low % 67/67/69 71/71/73 65/65/69 67/67/69 71/71/73 65/65/69
Operation mode Heat exchange mode / Bypass mode / Fresh-up mode
Heat exchange system Air to air cross flow total heat (sensible + latent heat) exchange
Heat exchange element Specially processed non-flammable paper
Humidifier System - Natural evaporating type
Dimensions Unit HeightxWidthxDepth mm 387x1,764x832 387x1,764x1,214 387x1,764x832 387x1,764x1,214
Weight Unit kg 94 110 112 100 119 123
Casing Material Galvanised steel plate
Fan-Air flow rate Heat exchange mode Ultra high/High/Low m³/h 500/500/440 750/750/640 950/950/820 500/500/440 750/750/640 950/950/820
- 50Hz Bypass mode Ultra high/High/Low m³/h 500/500/440 750/750/640 950/950/820 500/500/440 750/750/640 950/950/820
Fan-External static Ultra high/High/Low Pa 210/170/140 210/160/110 150/100/70 200/150/120 205/155/105 110/70/60
pressure - 50Hz
Air filter Type Multidirectional fibrous fleeces
Sound pressure Heat exchange mode Ultra high/High/Low dBA 39/37/35 41.5/39/37 41/39/36.5 38/36/34 40/37.5/35.5 40/38/35.5
level - 50Hz Bypass mode Ultra high/High/Low dBA 40/38/35.5 41.5/39/37 41/39/36.5 39/36/34.5 41/38/36 41/39/35.5
Operation range Around unit °CDB 0°C~40°CDB, 80% RH or less
Supply air °CDB -15°C~40°CDB, 80% RH or less
Return air °CDB 0°C~40°CDB, 80% RH or less
On coil temperature Cooling/Max./Heating/Min. °CDB -15/43 -15/43
Refrigerant Control Electronic expansion valve
Type R-410A
GWP 2,087.5
Connection duct diameter mm 200 250 200 250
Piping connections Liquid OD mm 6.35
Gas OD mm 12.7
Water supply mm - 6.4
Drain PT3/4 external thread
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
Current Maximum fuse amps (MFA) A 15
