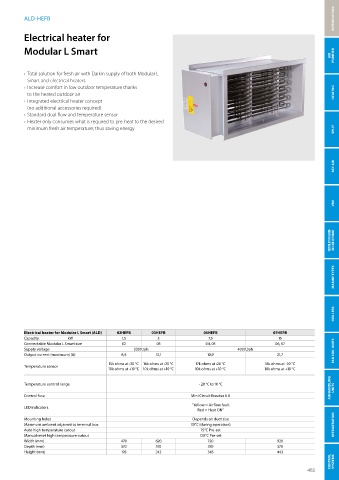

ALD-HEFB

Electrical heater for

Modular L Smart
AIR PURIFIER

› Total solution for fresh air with Daikin supply of both Modular L
Smart and electrical heaters
› Increase comfort in low outdoor temperature thanks
to the heated outdoor air HEATING
› Integrated electrical heater concept
(no additional accessories required)
› Standard dual flow and temperature sensor
› Heater only consumes what is required to pre-heat to the desired
minimum fresh air temperature; thus saving energy SPLIT

SKY AIR

VRV

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

CHILLERS

Electrical heater for Modular L Smart (ALD) 02HEFB 03HEFB 05HEFB 07HEFB
Capacity kW 1,5 3 7,5 15
Connectable Modular L Smart size 02 03 04, 05 06, 07
Supply voltage 230V,1ph 400V,3ph FAN COIL UNITS
Output current (maximum) (A) 6,6 13,1 10,9 21,7
15k ohms at -20 °C 16k ohms at -20 °C 17k ohms at -20 °C 18k ohms at -20 °C
Temperature sensor
10k ohms at +10 °C 10k ohms at +10 °C 10k ohms at +10 °C 10k ohms at +10 °C
AIR HANDLING UNITS
Temperature control range - 20 °C to 10 °C
Control fuse Mini Circuit Breaker 6 A
"Yellow = Airflow fault
LED indicators
Red = Heat ON”
Mounting holes Depends on duct size
Maximum ambient adjacent to terminal box 30°C (during operation) REFRIGERATION
Auto high temperature cutout 75°C Pre-set
Manual reset high temperature cutout 120°C Pre-set
Width (mm) 470 620 720 920
Depth (mm) 370 370 370 370
Height (mm) 193 243 343 443
