INTRODUCTION

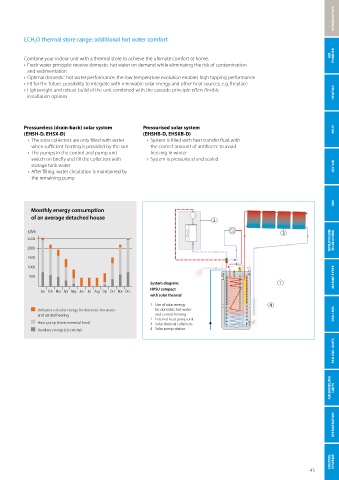

ECH 2 O thermal store range: additional hot water comfort

AIR PURIFIER
Combine your indoor unit with a thermal store to achieve the ultimate comfort at home.
› Fresh water principle: receive domestic hot water on demand while eliminating the risk of contamination
and sedimentation
› Optimal domestic hot water performance: the low temperature evolution enables high tapping performance
› Fit for the future: possibility to integrate with renewable solar energy and other heat sources, e.g. fireplace
› Lightweight and robust build of the unit combined with the cascade principle offers flexible HEATING
installation options

Pressureless (drain-back) solar system Pressurised solar system SPLIT
(EHSH-D, EHSX-D) (EHSHB-D, EHSXB-D)
› The solar collectors are only filled with water › System is filled with heat transfer fluid with
when sufficient heating is provided by the sun the correct amount of antifreeze to avoid
› The pumps in the control and pump unit freezing in winter
switch on briefly and fill the collectors with › System is pressurised and sealed
storage tank water SKY AIR
› After filling, water circulation is maintained by
the remaining pump

VRV
Monthly energy consumption
of an average detached house 2

kWh 3
2500 VENTILATION & BID- DLE AIR CURTAINS
2000
1500
1000
500 MARINE TYPES
System diagram: 1
HPSU compact
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
with solar thermal
1 Use of solar energy 4
Utilisation of solar energy for domestic hot water for domestic hot water
and central heating and central heating CHILLERS
2 External heat pump unit
Heat pump (environmental heat) 3 Solar thermal collectors
Auxiliary energy (electricity) 4 Solar pump station
