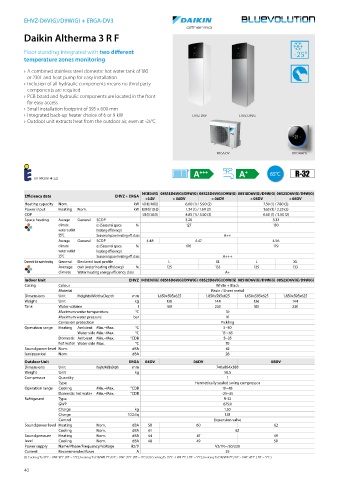

Page 42 - General Catalogue

EHVZ-D6V(G)/D9W(G) + ERGA-DV3

Daikin Altherma 3 R F

Floor standing integrated with two different
temperature zones monitoring

› A combined stainless steel domestic hot water tank of 180
or 230L and heat pump for easy installation
› Inclusion of all hydraulic components means no third party
components are required
› PCB board and hydraulic components are located in the front
for easy access
› Small installation footprint of 595 x 600 mm
› Integrated back-up heater choice of 6 or 9 kW EHVZ-D6V EHVZ-D6VG
› Outdoor unit extracts heat from the outdoor air, even at -25°C

ERGA-DV BRC1HHDS

A +++ A + 65°C
011-1W0218  222
A ++ A
04S18D6V(G) 08S18D6V(G)/D9W(G) 08S23D6V(G)/D9W(G) 08S18D6V(G)/D9W(G) 08S23D6V(G)/D9W(G)
Efficiency data EHVZ + ERGA A + B
+ 04DV + 06DV + 06DV + 08DV + 08DV
Heating capacity Nom. kW 4.30 (1) / 4.60 (2) 6.00 (1) / 5.90 (2) 7.50 (1) / 7.80 (2)
A
Power input Heating Nom. kW 0.850 (1) / 1.26 (2) 1.24 (1) / 1.69 (2) C 1.63 (1) / 2.23 (2)
COP 5.10 (1) / 3.65 (2) 4.85 (1) / 3.50 (2) 4.60 (1) / 3.50 (2)
127 B
Space heating Average General SCOP 3.26 D 3.32
climate ŋs (Seasonal space % 130
water outlet heating efficiency)
55°C Seasonal space heating eff. class C A++ E
Average General SCOP 4.48 4.47 4.56
climate ŋs (Seasonal space % 176 D F 179
water outlet heating efficiency)
35°C Seasonal space heating eff. class E A+++ G
Domestic hot water heating General Declared load profile L XL L XL
Average ŋwh (water heating efficiency) % 125 133 125 133
climate Water heating energy efficiency class F A+
G
Indoor Unit EHVZ 04S18D6V(G) 08S18D6V(G)/D9W(G) 08S23D6V(G)/D9W(G) 08S18D6V(G)/D9W(G) 08S23D6V(G)/D9W(G)
Casing Colour White + Black
Material Resin / Sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625
Weight Unit kg 136 144 136 144
Tank Water volume l 180 230 180 230
Maximum water temperature °C 70
Maximum water pressure bar 10
Corrosion protection Pickling
Operation range Heating Ambient Min.~Max. °C 5~30
Water side Min.~Max. °C 15 ~65
Domestic Ambient Min.~Max. °CDB 5~35
hot water Water side Max. °C 70
Sound power level Nom. dBA 42
Sound pressure level Nom. dBA 28
Outdoor Unit ERGA 04DV 06DV 08DV
Dimensions Unit HeightxWidthxDepth mm 740x884x388
Weight Unit kg 58.5
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -25~35
Refrigerant Type R-32
GWP 675.0
Charge kg 1.50
Charge TCO2Eq 1.01
Control Expansion valve
Sound power level Heating Nom. dBA 58 60 62
Cooling Nom. dBA 61 62
Sound pressure Heating Nom. dBA 44 47 49
level Cooling Nom. dBA 48 49 50
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 25
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
